Zylindergriffe
Artikelnummer: 06325
Produktinfo
Notera

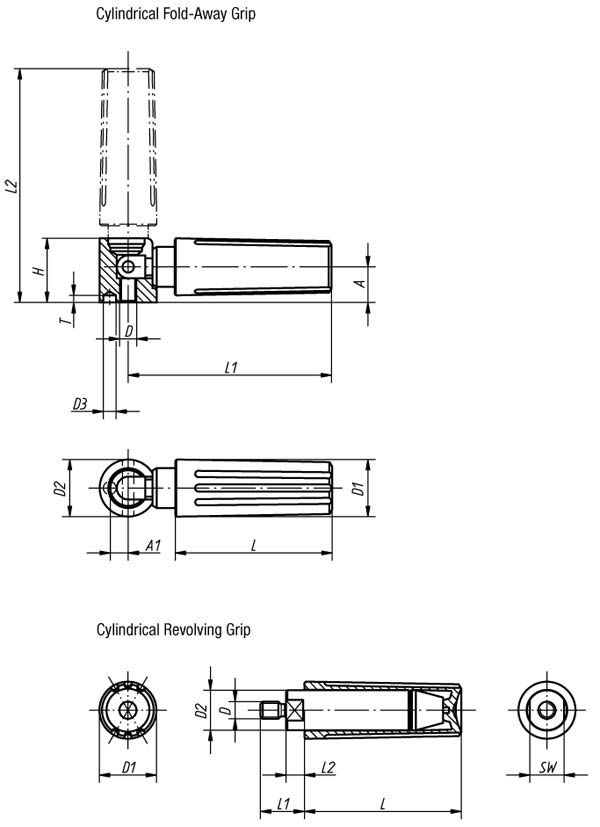

Cylindrical Grips are supplied assembled and can be screwed to handwheels, spools and cranks.
Borehole D3 is used as a positioning hole.
Order No. | Size | D | D2 | L | L1 | SW | Approx. weight kg | D1 | L2 |
06325-104 | 1 | M4 | 9 | 35 | 11 | 8 | 0,013 | 13 | 5 |
06325-205 | 2 | M5 | 11 | 44 | 13 | 10 | 0,025 | 16 | 5,5 |
06325-306 | 3 | M6 | 14 | 55 | 14 | 12 | 0,050 | 20 | 5 |
06325-408 | 4 | M8 | 18 | 70,5 | 25 | 15 | 0,103 | 25 | 13 |
Order No. | Size | D | D2 | D3 | A | A1 | L | L1 | T | Approx. weight kg | D1 | H | L2 |
06326-104 | 1 | M4 | 13 | 2,5 | 8 | 4,3 | 35 | 47 | 4,5 | 0,028 | 13 | 14,5 | 54,5 |
06326-205 | 2 | M5 | 16 | 3,5 | 10 | 5,3 | 44 | 58 | 4,5 | 0,051 | 16 | 18 | 67 |
06326-306 | 3 | M6 | 20 | 4,5 | 12,5 | 6,5 | 55 | 71,5 | 6 | 0,101 | 20 | 22,5 | 82 |
06326-408 | 4 | M8 | 26 | 5,5 | 16 | 9 | 70,5 | 98,5 | 6,5 | 0,225 | 25 | 29 | 112,5 |
