Handräder
Artikelnummer: 06262
Produktinfo
Notera
The hub cover is supplied unassembled.

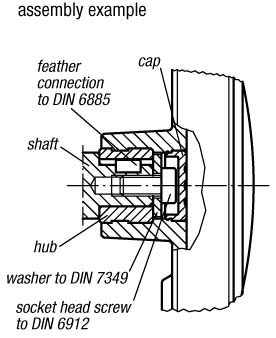

The handwheels can be secured axially to the shaft via feather connection by cross-pinning or with a socket head screw to DIN 6912 and a washer to DIN 7349.

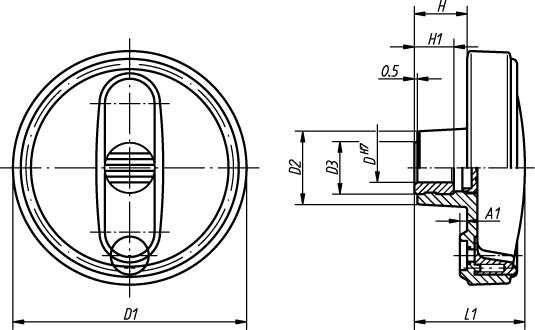

Order No. | Surface finish | Size | D | ToleranceD | D2 | D3 | A1 | L1 | Approx. weight kg | D1 | H | H1 | B3 | T |
06262-108008 | hub without slot | 1 | 8 | H7 | 25 | 19 | 2,5 | 37,5 | 0,074 | 80 | 17,5 | 13 | - | - |
06262-108010 | hub without slot | 1 | 10 | H7 | 25 | 19 | 2,5 | 37,5 | 0,074 | 80 | 17,5 | 13 | - | - |
06262-108012 | hub without slot | 1 | 12 | H7 | 25 | 19 | 2,5 | 37,5 | 0,074 | 80 | 17,5 | 13 | - | - |
06262-210010 | hub without slot | 2 | 10 | H7 | 28 | 19 | 3 | 44 | 0,125 | 100 | 20 | 13 | - | - |
06262-210012 | hub without slot | 2 | 12 | H7 | 28 | 19 | 3 | 44 | 0,125 | 100 | 20 | 13 | - | - |
06262-312512 | hub without slot | 3 | 12 | H7 | 35 | 25 | 4 | 53 | 0,229 | 125 | 23,5 | 18,5 | - | - |
06262-312516 | hub without slot | 3 | 16 | H7 | 35 | 25 | 4 | 53 | 0,229 | 125 | 23,5 | 18,5 | - | - |
06262-312514 | hub without slot | 3 | 14 | H7 | 35 | 25 | 4 | 53 | 0,229 | 125 | 23,5 | 18,5 | - | - |
06262-416014 | hub without slot | 4 | 14 | H7 | 45 | 25 | 5,6 | 64,5 | 0,425 | 160 | 28 | 18,5 | - | - |
06262-416016 | hub without slot | 4 | 16 | H7 | 45 | 25 | 5,6 | 64,5 | 0,425 | 160 | 28 | 18,5 | - | - |
Order No. | Surface finish | Size | D | ToleranceD | D2 | D3 | A1 | L1 | ToleranceHub Slot B3 | Approx. weight kg | D1 | H | H1 | B3 | T |
06262-10800802 | hub with slot | 1 | 8 | H7 | 25 | 19 | 2,5 | 37,5 | P9 | 0,074 | 80 | 17,5 | 13 | 2 | 9 |
06262-10801003 | hub with slot | 1 | 10 | H7 | 25 | 19 | 2,5 | 37,5 | P9 | 0,074 | 80 | 17,5 | 13 | 3 | 11,4 |
06262-10801204 | hub with slot | 1 | 12 | H7 | 25 | 19 | 2,5 | 37,5 | P9 | 0,074 | 80 | 17,5 | 13 | 4 | 13,8 |
06262-21001003 | hub with slot | 2 | 10 | H7 | 28 | 19 | 3 | 44 | P9 | 0,125 | 100 | 20 | 13 | 3 | 11,4 |
06262-21001204 | hub with slot | 2 | 12 | H7 | 28 | 19 | 3 | 44 | P9 | 0,125 | 100 | 20 | 13 | 4 | 13,8 |
06262-31251204 | hub with slot | 3 | 12 | H7 | 35 | 25 | 4 | 53 | P9 | 0,229 | 125 | 23,5 | 18,5 | 4 | 13,8 |
06262-31251405 | hub with slot | 3 | 14 | H7 | 35 | 25 | 4 | 53 | P9 | 0,229 | 125 | 23,5 | 18,5 | 5 | 16,3 |
06262-31251605 | hub with slot | 3 | 16 | H7 | 35 | 25 | 4 | 53 | P9 | 0,229 | 125 | 23,5 | 18,5 | 5 | 18,3 |
06262-41601405 | hub with slot | 4 | 14 | H7 | 45 | 25 | 5,6 | 64,5 | P9 | 0,425 | 160 | 28 | 18,5 | 5 | 16,3 |
06262-41601605 | hub with slot | 4 | 16 | H7 | 45 | 25 | 5,6 | 64,5 | P9 | 0,425 | 160 | 28 | 18,5 | 5 | 18,3 |
