Griffkugeln drehbar
Artikelnummer: 06246
Produktinfo
Notera
DELTA Add the desired grip cap colour here; no colour code is required with anthracite grey grip caps

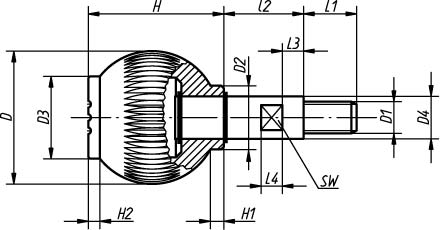

Order No. | Surface finish | Size | D | D2 | D3 | D4 | H2 | L1 | L3 | L4 | SW | Approx. weight kg | Colour | D1 | H | H1 | L2 |
06246-106 | shaft steel | 1 | 25 | 12 | 17 | 8 | 2,2 | 10 | 5 | 5 | 7 | 0,020 | anthracite grey | M6 | 25 | 2,5 | 15 |
06246-1065 | shaft steel | 1 | 25 | 12 | 17 | 8 | 2,2 | 10 | 5 | 5 | 7 | 0,020 | light grey | M6 | 25 | 2,5 | 15 |
06246-1066 | shaft steel | 1 | 25 | 12 | 17 | 8 | 2,2 | 10 | 5 | 5 | 7 | 0,020 | traffic red | M6 | 25 | 2,5 | 15 |
06246-1067 | shaft steel | 1 | 25 | 12 | 17 | 8 | 2,2 | 10 | 5 | 5 | 7 | 0,020 | bright yellow | M6 | 25 | 2,5 | 15 |
06246-208 | shaft steel | 2 | 32 | 15,5 | 19 | 10 | 2,8 | 12 | 6 | 6 | 8 | 0,042 | anthracite grey | M8 | 33 | 3,2 | 20 |
06246-2085 | shaft steel | 2 | 32 | 15,5 | 19 | 10 | 2,8 | 12 | 6 | 6 | 8 | 0,042 | light grey | M8 | 33 | 3,2 | 20 |
06246-2086 | shaft steel | 2 | 32 | 15,5 | 19 | 10 | 2,8 | 12 | 6 | 6 | 8 | 0,042 | traffic red | M8 | 33 | 3,2 | 20 |
06246-2087 | shaft steel | 2 | 32 | 15,5 | 19 | 10 | 2,8 | 12 | 6 | 6 | 8 | 0,042 | bright yellow | M8 | 33 | 3,2 | 20 |
06246-310 | shaft steel | 3 | 40 | 19 | 23 | 13 | 3,5 | 15 | 7 | 9 | 10 | 0,085 | anthracite grey | M10 | 41,5 | 4 | 25 |
06246-3105 | shaft steel | 3 | 40 | 19 | 23 | 13 | 3,5 | 15 | 7 | 9 | 10 | 0,085 | light grey | M10 | 41,5 | 4 | 25 |
06246-3106 | shaft steel | 3 | 40 | 19 | 23 | 13 | 3,5 | 15 | 7 | 9 | 10 | 0,085 | traffic red | M10 | 41,5 | 4 | 25 |
06246-3107 | shaft steel | 3 | 40 | 19 | 23 | 13 | 3,5 | 15 | 7 | 9 | 10 | 0,085 | bright yellow | M10 | 41,5 | 4 | 25 |
06246-412 | shaft steel | 4 | 50 | 24 | 31 | 16 | 4,4 | 20 | 8 | 8 | 13 | 0,157 | anthracite grey | M12 | 51 | 5 | 30 |
06246-4125 | shaft steel | 4 | 50 | 24 | 31 | 16 | 4,4 | 20 | 8 | 8 | 13 | 0,157 | light grey | M12 | 51 | 5 | 30 |
06246-4126 | shaft steel | 4 | 50 | 24 | 31 | 16 | 4,4 | 20 | 8 | 8 | 13 | 0,157 | traffic red | M12 | 51 | 5 | 30 |
06246-4127 | shaft steel | 4 | 50 | 24 | 31 | 16 | 4,4 | 20 | 8 | 8 | 13 | 0,157 | bright yellow | M12 | 51 | 5 | 30 |
06246-0106 | shaft stainless steel | 1 | 25 | 12 | 17 | 8 | 2,2 | 10 | 5 | 5 | 7 | 0,020 | anthracite grey | M6 | 25 | 2,5 | 15 |
06246-01065 | shaft stainless steel | 1 | 25 | 12 | 17 | 8 | 2,2 | 10 | 5 | 5 | 7 | 0,020 | light grey | M6 | 25 | 2,5 | 15 |
06246-01066 | shaft stainless steel | 1 | 25 | 12 | 17 | 8 | 2,2 | 10 | 5 | 5 | 7 | 0,020 | traffic red | M6 | 25 | 2,5 | 15 |
06246-01067 | shaft stainless steel | 1 | 25 | 12 | 17 | 8 | 2,2 | 10 | 5 | 5 | 7 | 0,020 | bright yellow | M6 | 25 | 2,5 | 15 |
06246-0208 | shaft stainless steel | 2 | 32 | 15,5 | 19 | 10 | 2,8 | 12 | 6 | 6 | 8 | 0,042 | anthracite grey | M8 | 33 | 3,2 | 20 |
06246-02085 | shaft stainless steel | 2 | 32 | 15,5 | 19 | 10 | 2,8 | 12 | 6 | 6 | 8 | 0,042 | light grey | M8 | 33 | 3,2 | 20 |
06246-02086 | shaft stainless steel | 2 | 32 | 15,5 | 19 | 10 | 2,8 | 12 | 6 | 6 | 8 | 0,042 | traffic red | M8 | 33 | 3,2 | 20 |
06246-02087 | shaft stainless steel | 2 | 32 | 15,5 | 19 | 10 | 2,8 | 12 | 6 | 6 | 8 | 0,042 | bright yellow | M8 | 33 | 3,2 | 20 |
06246-0310 | shaft stainless steel | 3 | 40 | 19 | 23 | 13 | 3,5 | 15 | 7 | 9 | 10 | 0,086 | anthracite grey | M10 | 41,5 | 4 | 25 |
06246-03105 | shaft stainless steel | 3 | 40 | 19 | 23 | 13 | 3,5 | 15 | 7 | 9 | 10 | 0,086 | light grey | M10 | 41,5 | 4 | 25 |
06246-03106 | shaft stainless steel | 3 | 40 | 19 | 23 | 13 | 3,5 | 15 | 7 | 9 | 10 | 0,086 | traffic red | M10 | 41,5 | 4 | 25 |
06246-03107 | shaft stainless steel | 3 | 40 | 19 | 23 | 13 | 3,5 | 15 | 7 | 9 | 10 | 0,086 | bright yellow | M10 | 41,5 | 4 | 25 |
06246-0412 | shaft stainless steel | 4 | 50 | 24 | 31 | 16 | 4,4 | 20 | 8 | 8 | 13 | 0,157 | anthracite grey | M12 | 51 | 5 | 30 |
06246-04125 | shaft stainless steel | 4 | 50 | 24 | 31 | 16 | 4,4 | 20 | 8 | 8 | 13 | 0,157 | light grey | M12 | 51 | 5 | 30 |
06246-04126 | shaft stainless steel | 4 | 50 | 24 | 31 | 16 | 4,4 | 20 | 8 | 8 | 13 | 0,157 | traffic red | M12 | 51 | 5 | 30 |
06246-04127 | shaft stainless steel | 4 | 50 | 24 | 31 | 16 | 4,4 | 20 | 8 | 8 | 13 | 0,157 | bright yellow | M12 | 51 | 5 | 30 |
