Arretier- und Spanngriffe mit Sicherheits-Wegbegrenzung
Artikelnummer: 03191_alt
Produktinfo
Notera

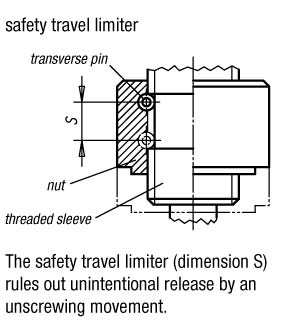

Nut with preassembled transverse pin are supplied separately.
DELTA Add the desired grip cap colour here; no colour code is required with anthracite grey grip caps

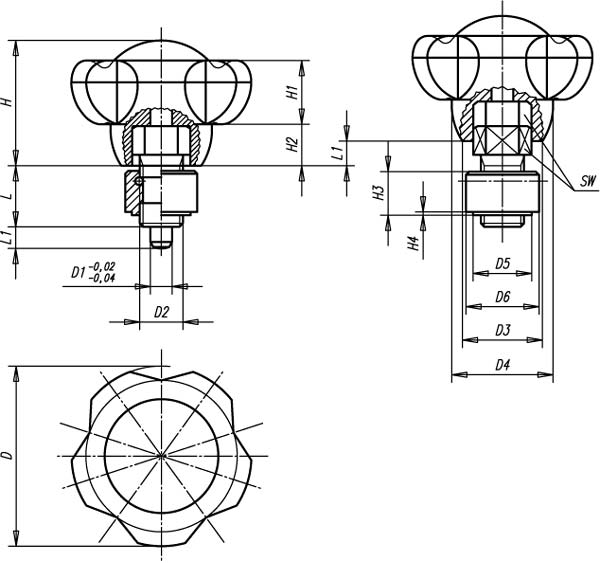

Order No. | Size | D | D2 | D3 | D4 | D5 | D6 | H2 | H3 | H4 | L | L1 | S approx. | SW | Approx. weight kg | Colour | D1 | H | H1 |
03191-1105 | 1 | 50 | M10x1 | 22,2 | 28,2 | 16 | 20 | 11,5 | 11 | 1 | 13 | 5 | 2 | 13 | 0,033 | anthracite grey | 5 | 34,8 | 17,8 |
03191-11055 | 1 | 50 | M10x1 | 22,2 | 28,2 | 16 | 20 | 11,5 | 11 | 1 | 13 | 5 | 2 | 13 | 0,033 | light grey | 5 | 34,8 | 17,8 |
03191-11056 | 1 | 50 | M10x1 | 22,2 | 28,2 | 16 | 20 | 11,5 | 11 | 1 | 13 | 5 | 2 | 13 | 0,033 | traffic red | 5 | 34,8 | 17,8 |
03191-11057 | 1 | 50 | M10x1 | 22,2 | 28,2 | 16 | 20 | 11,5 | 11 | 1 | 13 | 5 | 2 | 13 | 0,033 | bright yellow | 5 | 34,8 | 17,8 |
03191-1206 | 2 | 50 | M12x1,5 | 22,2 | 28,2 | 16 | 20 | 11,5 | 14 | 1 | 17 | 6 | 3,5 | 14 | 0,040 | anthracite grey | 6 | 34,8 | 17,8 |
03191-12065 | 2 | 50 | M12x1,5 | 22,2 | 28,2 | 16 | 20 | 11,5 | 14 | 1 | 17 | 6 | 3,5 | 14 | 0,040 | light grey | 6 | 34,8 | 17,8 |
03191-12066 | 2 | 50 | M12x1,5 | 22,2 | 28,2 | 16 | 20 | 11,5 | 14 | 1 | 17 | 6 | 3,5 | 14 | 0,040 | traffic red | 6 | 34,8 | 17,8 |
03191-12067 | 2 | 50 | M12x1,5 | 22,2 | 28,2 | 16 | 20 | 11,5 | 14 | 1 | 17 | 6 | 3,5 | 14 | 0,040 | bright yellow | 6 | 34,8 | 17,8 |
03191-1308 | 3 | 63 | M16x1,5 | 28 | 35,5 | 20 | 25 | 14,5 | 18 | 1,5 | 22 | 8 | 5 | 19 | 0,097 | anthracite grey | 8 | 44 | 22,5 |
03191-13085 | 3 | 63 | M16x1,5 | 28 | 35,5 | 20 | 25 | 14,5 | 18 | 1,5 | 22 | 8 | 5 | 19 | 0,097 | light grey | 8 | 44 | 22,5 |
03191-13086 | 3 | 63 | M16x1,5 | 28 | 35,5 | 20 | 25 | 14,5 | 18 | 1,5 | 22 | 8 | 5 | 19 | 0,097 | traffic red | 8 | 44 | 22,5 |
03191-13087 | 3 | 63 | M16x1,5 | 28 | 35,5 | 20 | 25 | 14,5 | 18 | 1,5 | 22 | 8 | 5 | 19 | 0,097 | bright yellow | 8 | 44 | 22,5 |
03191-1410 | 4 | 63 | M20x1,5 | 28 | 35,5 | 25 | 30 | 14,5 | 20 | 1,5 | 24 | 10 | 6 | 22 | 0,135 | anthracite grey | 10 | 44 | 22,5 |
03191-14105 | 4 | 63 | M20x1,5 | 28 | 35,5 | 25 | 30 | 14,5 | 20 | 1,5 | 24 | 10 | 6 | 22 | 0,135 | light grey | 10 | 44 | 22,5 |
03191-14106 | 4 | 63 | M20x1,5 | 28 | 35,5 | 25 | 30 | 14,5 | 20 | 1,5 | 24 | 10 | 6 | 22 | 0,135 | traffic red | 10 | 44 | 22,5 |
03191-14107 | 4 | 63 | M20x1,5 | 28 | 35,5 | 25 | 30 | 14,5 | 20 | 1,5 | 24 | 10 | 6 | 22 | 0,135 | bright yellow | 10 | 44 | 22,5 |
