Arretier- und Spanngriffe
Artikelnummer: 03190
Produktinfo
Notera
DELTA Add the desired grip cap colour here; no colour code is required with anthracite grey grip caps

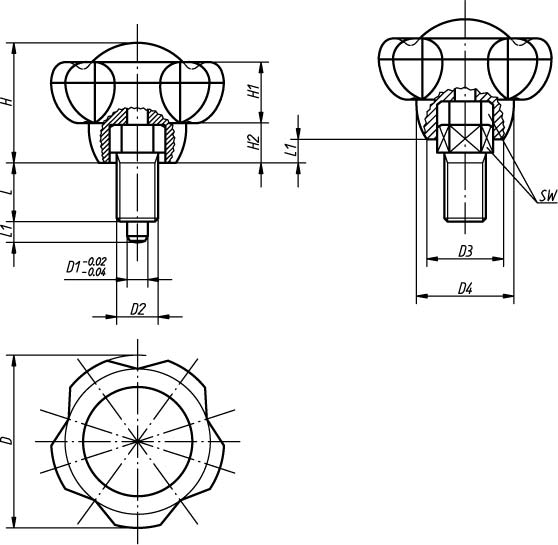

Order No. | Size | D | D2 | D3 | D4 | H2 | L | L1 | SW | Approx. weight kg | Colour | D1 | H | H1 |
03190-1105 | 1 | 50 | M10x1 | 22,2 | 28,2 | 11,5 | 13 | 5 | 13 | 0,033 | anthracite grey | 5 | 34,8 | 17,8 |
03190-11055 | 1 | 50 | M10x1 | 22,2 | 28,2 | 11,5 | 13 | 5 | 13 | 0,033 | light grey | 5 | 34,8 | 17,8 |
03190-11056 | 1 | 50 | M10x1 | 22,2 | 28,2 | 11,5 | 13 | 5 | 13 | 0,033 | traffic red | 5 | 34,8 | 17,8 |
03190-11057 | 1 | 50 | M10x1 | 22,2 | 28,2 | 11,5 | 13 | 5 | 13 | 0,033 | bright yellow | 5 | 34,8 | 17,8 |
03190-1206 | 2 | 50 | M12x1,5 | 22,2 | 28,2 | 11,5 | 17 | 6 | 14 | 0,040 | anthracite grey | 6 | 34,8 | 17,8 |
03190-12065 | 2 | 50 | M12x1,5 | 22,2 | 28,2 | 11,5 | 17 | 6 | 14 | 0,040 | light grey | 6 | 34,8 | 17,8 |
03190-12066 | 2 | 50 | M12x1,5 | 22,2 | 28,2 | 11,5 | 17 | 6 | 14 | 0,040 | traffic red | 6 | 34,8 | 17,8 |
03190-12067 | 2 | 50 | M12x1,5 | 22,2 | 28,2 | 11,5 | 17 | 6 | 14 | 0,040 | bright yellow | 6 | 34,8 | 17,8 |
03190-1308 | 3 | 63 | M16x1,5 | 28 | 35,5 | 14,5 | 22 | 8 | 19 | 0,097 | anthracite grey | 8 | 44 | 22,5 |
03190-13085 | 3 | 63 | M16x1,5 | 28 | 35,5 | 14,5 | 22 | 8 | 19 | 0,097 | light grey | 8 | 44 | 22,5 |
03190-13086 | 3 | 63 | M16x1,5 | 28 | 35,5 | 14,5 | 22 | 8 | 19 | 0,097 | traffic red | 8 | 44 | 22,5 |
03190-13087 | 3 | 63 | M16x1,5 | 28 | 35,5 | 14,5 | 22 | 8 | 19 | 0,097 | bright yellow | 8 | 44 | 22,5 |
03190-1410 | 4 | 63 | M20x1,5 | 28 | 35,5 | 14,5 | 24 | 10 | 22 | 0,135 | anthracite grey | 10 | 44 | 22,5 |
03190-14105 | 4 | 63 | M20x1,5 | 28 | 35,5 | 14,5 | 24 | 10 | 22 | 0,135 | light grey | 10 | 44 | 22,5 |
03190-14106 | 4 | 63 | M20x1,5 | 28 | 35,5 | 14,5 | 24 | 10 | 22 | 0,135 | traffic red | 10 | 44 | 22,5 |
03190-14107 | 4 | 63 | M20x1,5 | 28 | 35,5 | 14,5 | 24 | 10 | 22 | 0,135 | bright yellow | 10 | 44 | 22,5 |
