Schalen-Klappgriffe

Artikelnummer: 06962

Produktinfo

Material
Die cast aluminium

Yta
Tray and handle black or light grey powder-coated, semi-matt

Notera

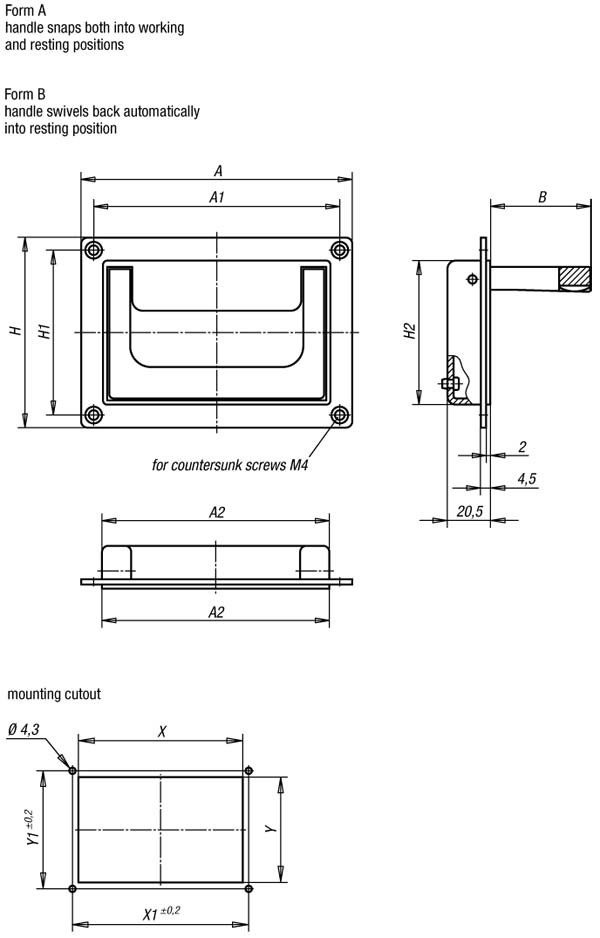

With their modern design, Folding Tray Handles can be used wherever solid and attractive handles are needed. Folding Tray Handles form A snap into both resting and working positions. Folding Tray Handles form B swivels back into its resting position automatically after use.

Order No.	Surface finish	A	A1	A2	B	H2	X	X1	Y	Y1	Load bearing capacity N	Approx. weight kg	H	H1	Form
06962-07911811	black powder-coated	130	118	109	48	69	110	118	70,5	79	500	0,197	91	79	A
06962-05018411	black powder-coated	200	184	170	51	72	171	184	73	50	500	0,286	80	50	A
06962-07911812	light grey powder-coated	130	118	109	48	69	110	118	70,5	79	500	0,197	91	79	A
06962-05018412	light grey powder-coated	200	184	170	51	72	171	184	73	50	500	0,286	80	50	A
06962-07911821	black powder-coated	130	118	109	48	69	110	118	70,5	79	500	0,197	91	79	B
06962-05018421	black powder-coated	200	184	170	51	72	171	184	73	50	500	0,286	80	50	B
06962-05018422	light grey powder-coated	200	184	170	51	72	171	184	73	50	500	0,286	80	50	B
06962-07911822	light grey powder-coated	130	118	109	48	69	110	118	70,5	79	500	0,197	91	79	B
