Spann-Exzenter mit Krallenscheiben
Artikelnummer: 04434
Produktinfo
Material
Case hardened steel notched ring,
eccentric screw treated steel
Yta
Eccentric screw heat-treated quality class 10.9, black oxide finish; hardened anodized notched ring
Notera
The notched ring is fully suitable for fastening rough pieces (mouldings or rough forging).

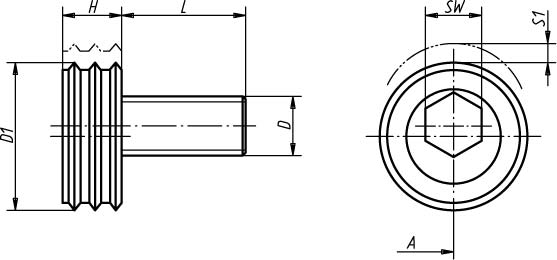

"A" = distance from workpiece to the centre of the thread (clamping screw).
| Order No. | A | D | L | SW | S1 (Clamping travel) | Clamping force kN | Approx. weight kg | Tightening torque max. Nm | D1 | H |
|---|
| 04434-12 | 12,7 | M12 | 22,5 | 8 | 2 | 17,8 | 0,045 | 88 | 25,4 | 9,6 |
| 04434-16 | 15 | M16 | 26,8 | 12 | 2,5 | 26,7 | 0,090 | 135 | 30,1 | 12,7 |
