Profil-Klappgriffe

Artikelnummer: 06961

Produktinfo

Material

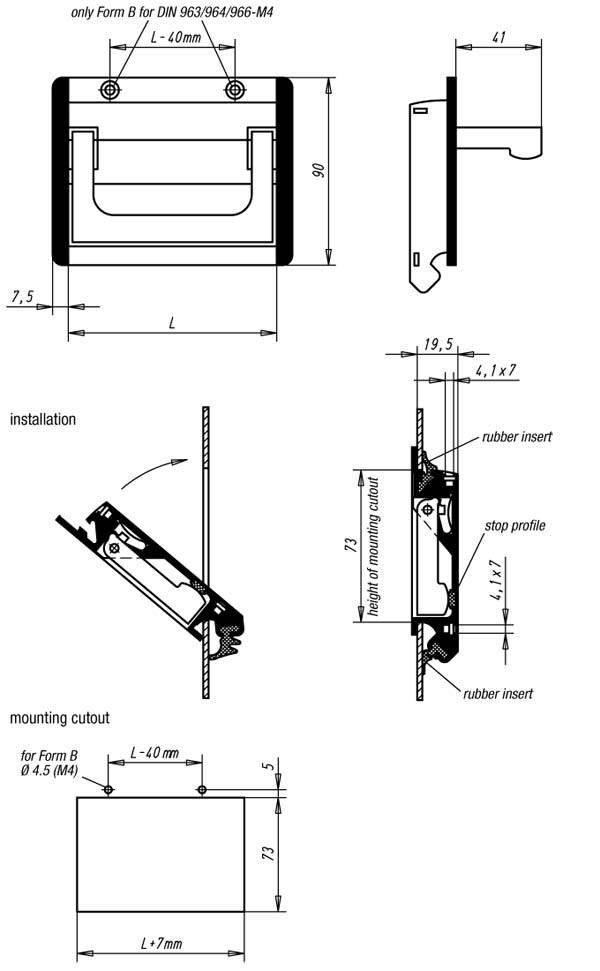

Tray and folding handle in aluminium profile, end caps polyamide; form A: mounting by rubber insert form B: mounting by 2 countersunk screws, steel

Yta
Tray and folding handle glass-ball blasted, satin finish and black anodized or natural colour anodized; rubber insert black, fastening screws galvanized

Notera
Profile Folding Handles form A can be fitted without screw mounting with 2 soft plastic profiles with sheet strengths of 1-2.5 mm. Profile Folding Handles form B can be mounted from outside with 2 countersunk screws. Two cross-slots for M4 screws allow earth/ground connection and can serve as a mounting aid for additional add-on parts.

Order No.	Surface finish	L	Mounting cutout	Load bearing capacity N	Approx. weight kg	Form
06961-10011	tray and folding handle black anodized	100	107 x 73	500	0,273	A
06961-11811	tray and folding handle black anodized	118	125 x 73	500	0,320	A
06961-16711	tray and folding handle black anodized	167	174 x 73	500	0,433	A
06961-10013	tray and folding handle natural colour anodized	100	107 x 73	500	0,273	A
06961-11813	tray and folding handle natural colour anodized	118	125 x 73	500	0,320	A
06961-16713	tray and folding handle natural colour anodized	167	174 x 73	500	0,433	A
06961-10021	tray and folding handle black anodized	100	107 x 73	500	0,273	B
06961-11821	tray and folding handle black anodized	118	125 x 73	500	0,320	B
06961-16721	tray and folding handle black anodized	167	174 x 73	500	0,433	B
06961-10023	tray and folding handle natural colour anodized	100	107 x 73	500	0,273	B
06961-11823	tray and folding handle natural colour anodized	118	125 x 73	500	0,320	B
06961-16723	tray and folding handle natural colour anodized	167	174 x 73	500	0,433	B
