Schalengriffe

Artikelnummer: 06960

Produktinfo

Material
Tray handle in aluminium profile, end caps polyamide; form A: mounting by rubber insert form B: mounting by 2 countersunk screws, steel

Yta
Tray handle glass-ball blasted, satin finish and black anodized or natural colour anodized; rubber insert black; fastening screws galvanized

Notera

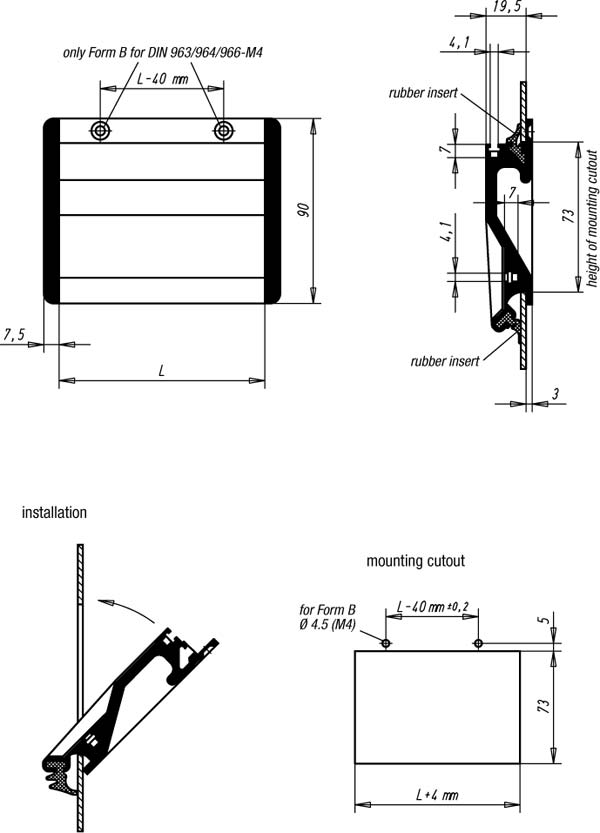

The Tray Handles form A can be used without screw mounting with sheet strengths of 1-2.5 mm. Two rubber inserts ensure absolutely firm mounting. The Tray Handles form B can be mounted from outside with 2 countersunk screws. Two cross-slots offset by 90° for M4 screws allow earth/ground connection and can serve as a mounting aid for additional add-on parts.

Order No.	Surface finish	L	Mounting cutout	Load bearing capacity N	Approx. weight kg	Form
06960-10011	tray handle black anodized	100	104 x 73	500	0,107	A
06960-11811	tray handle black anodized	118	122 x 73	500	0,126	A
06960-16711	tray handle black anodized	167	171 x 73	500	0,178	A
06960-10013	tray handle natural colour anodized	100	104 x 73	500	0,107	A
06960-11813	tray handle natural colour anodized	118	122 x 73	500	0,126	A
06960-16713	tray handle natural colour anodized	167	171 x 73	500	0,178	A
06960-10021	tray handle black anodized	100	104 x 73	500	0,107	B
06960-11821	tray handle black anodized	118	122 x 73	500	0,126	B
06960-16721	tray handle black anodized	167	171 x 73	500	0,178	B
06960-10023	tray handle natural colour anodized	100	104 x 73	500	0,107	B
06960-11823	tray handle natural colour anodized	118	122 x 73	500	0,126	B
06960-16723	tray handle natural colour anodized	167	171 x 73	500	0,178	B
