Gerätegriffe_2

Artikelnummer: 06958

Produktinfo

Material
Connecting bridge in aluminium EN AW-6060; grip leg in polyamide glass-ball reinforced; threaded bush in brass

Yta
Connecting bridge finely ground and natural colour or black anodized; grip leg aluminium colour or black

Notera
Connecting bridge and grip leg are firmly screwed with each other.

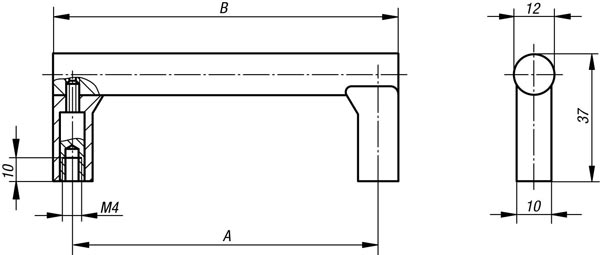

Order No.	Surface finish	A	B	Load bearing capacity N	Approx. weight kg
06958-1055041	connecting bridge natural colour anodized, grip leg aluminium colour	55	67	300	0,035
06958-1088041	connecting bridge natural colour anodized, grip leg aluminium colour	88	100	300	0,044
06958-1100041	connecting bridge natural colour anodized, grip leg aluminium colour	100	112	300	0,048
06958-1120041	connecting bridge natural colour anodized, grip leg aluminium colour	120	132	300	0,054
06958-1180041	connecting bridge natural colour anodized, grip leg aluminium colour	180	192	300	0,072
06958-1055042	connecting bridge natural colour anodized, grip leg black	55	67	300	0,035
06958-1088042	connecting bridge natural colour anodized, grip leg black	88	100	300	0,044
06958-1100042	connecting bridge natural colour anodized, grip leg black	100	112	300	0,048
06958-1120042	connecting bridge natural colour anodized, grip leg black	120	132	300	0,054
06958-1180042	connecting bridge natural colour anodized, grip leg black	180	192	300	0,072
06958-1055043	connecting bridge black anodized, grip leg aluminium colour	55	67	300	0,035
06958-1088043	connecting bridge black anodized, grip leg aluminium colour	88	100	300	0,044
06958-1100043	connecting bridge black anodized, grip leg aluminium colour	100	112	300	0,048
06958-1120043	connecting bridge black anodized, grip leg aluminium colour	120	132	300	0,054
06958-1180043	connecting bridge black anodized, grip leg aluminium colour	180	192	300	0,072
06958-1055044	connecting bridge black anodized, grip leg black	55	67	300	0,035
06958-1088044	connecting bridge black anodized, grip leg black	88	100	300	0,044
06958-1100044	connecting bridge black anodized, grip leg black	100	112	300	0,048
06958-1120044	connecting bridge black anodized, grip leg black	120	132	300	0,054
06958-1180044	connecting bridge black anodized, grip leg black	180	192	300	0,072
