Variable Sechskantklemmen
Artikelnummer: 04432
Produktinfo
Notera
The Unequal Hexagonal Cam Clamps are used to minimise the cost of clamping systems. The fastening range can be adjusted within a 17 mm diameter without moving the bore, simply by rotating the variable hexagonal element.
The clamps are available with flat edges for machined pieces and with notched edges for rough pieces.

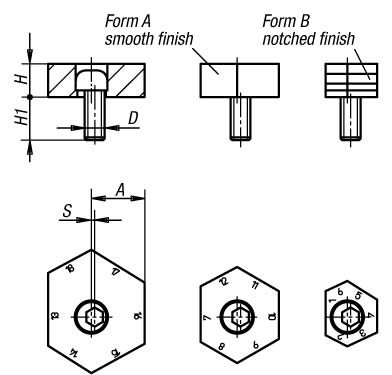

| Order No. | Surface finish | Centre-to-centre distance A for edge variant No. | D | S (Eccentric path) | Clamping force kN | Approx. weight kg | Form | H | H1 |
|---|
| 04432-09 | smooth finish | 1/12, 2/13, 3/14, 4/15, 5/16, 6/17 | M12 | 1 | 18 | 0,080 | A | 10 | 22 |
| 04432-10 | smooth finish | 7/18, 8/19, 9/20, 10/21, 11/22, 12/23 | M12 | 1 | 18 | 0,130 | A | 10 | 22 |
| 04432-11 | smooth finish | 13/24, 14/25, 15/26, 16/27, 17/28, 18/29 | M12 | 1 | 18 | 0,220 | A | 10 | 22 |
| 04432-13 | notched finish | 1/12, 2/13, 3/14, 4/15, 5/16, 6/17 | M12 | 1 | 18 | 0,070 | B | 10 | 22 |
| 04432-14 | notched finish | 7/18, 8/19, 9/20, 10/21, 11/22, 12/23 | M12 | 1 | 18 | 0,120 | B | 10 | 22 |
| 04432-15 | notched finish | 13/24, 14/25, 15/26, 16/27, 17/28, 18/29 | M12 | 1 | 18 | 0,209 | B | 10 | 22 |
