Rohrgriffe_4
Artikelnummer: 06941
Produktinfo
Material
Connecting tube stainless steel 1.4301;
fastener die-cast aluminium;
glass-ball reinforced end cap;
screws and steel clamping device
Yta
Connecting tube finely ground;
fastener black powder-coated;
end cap, black.
screws and clamping device galvanized and chromated
Notera
High load rating Tube Handles for mechanical and process equipment engineering. Easy mounting of components from front side. Any screw distance possible for same handle length.
| Order No. | A | B | E | L | Load bearing capacity N | Approx. weight kg |
|---|
| 06941-0600101 | 380 | 380 | 85 | 600 | 1000 | 1,847 |
| 06941-0700101 | 480 | 480 | 85 | 700 | 1000 | 2,029 |
| 06941-0800101 | 500 | 500 | 125 | 800 | 1000 | 2,212 |
| 06941-0900101 | 600 | 600 | 125 | 900 | 1000 | 2,395 |
| 06941-1000101 | 700 | 700 | 125 | 1000 | 1000 | 2,577 |

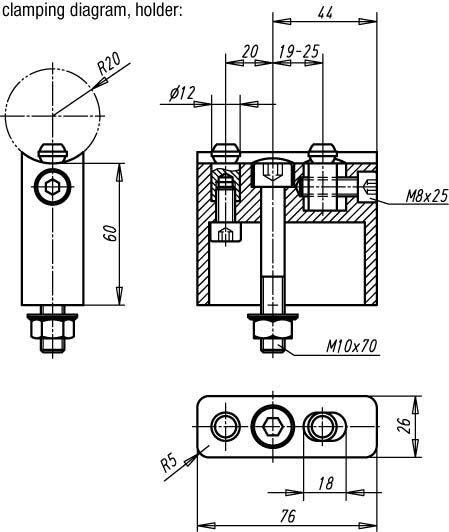

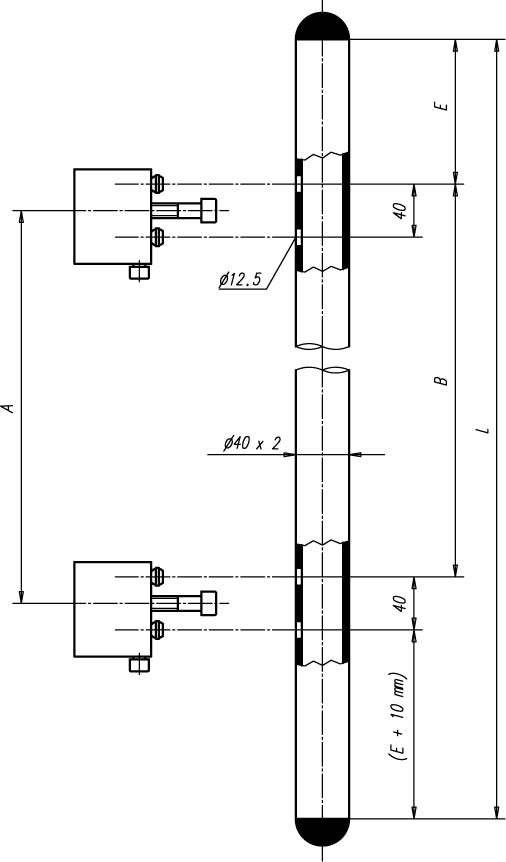

Konstruktion
