Rohrgriffe Nirosta_1
Artikelnummer: 06939_1
Produktinfo
Material
Connecting tube stainless steel 1.4301.
Grip legs in precision cast G 4581.
Fastening material in stainless steel 1.4301.
Clamping and sealing rings in food-grade silicone rubber. Temperature resistant in the long-term from -60 °C to +200 °C.
Yta
Connecting tube finely ground.
Grip legs blasted and electro-polished with matt-gloss finish.
Notera
All-purpose pluggable tube handles in stainless steel. Splash-proof tube-leg connection. Additional tube clamping by means of a grub screw with a hexagon socket. For screw assembly in the front or from behind. Easy to clean, especially suitable for food industry.

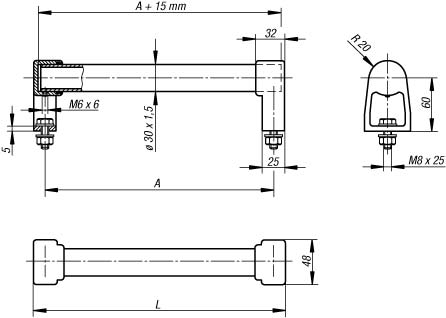

| Order No. | A | L | Load bearing capacity N | Approx. weight kg |
|---|
| 06939-200301 | 200 | 225 | 1000 | 0,821 |
| 06939-250301 | 250 | 275 | 1000 | 0,871 |
| 06939-300301 | 300 | 325 | 1000 | 0,920 |
| 06939-350301 | 350 | 375 | 1000 | 0,970 |
| 06939-400301 | 400 | 425 | 1000 | 1,030 |
| 06939-500301 | 500 | 525 | 1000 | 1,118 |
Konstruktion
