Rohrgriffe schrägstehend
Artikelnummer: 06928
Produktinfo
Material
Connecting tube in aluminium EN AW-6060 or stainless steel 1.4301;
grip leg in polyamide, glass-ball reinforced;
threaded bush in brass
Yta
Connecting tube matt-polished anodized or stainless steel finely ground;
grip leg aluminium colour or black
Notera
Slanting Tube Handles in modern industrial design. Precision fit of tube on plastic tenon due to clamping webs.
| Order No. | Surface finish | A | B | Load bearing capacity N | Approx. weight kg |
|---|
| 06928-2150061 | Connecting tube aluminium anodized, grip leg black | 150 | 165 | 800 | 0,112 |
| 06928-2200061 | Connecting tube aluminium anodized, grip leg black | 200 | 215 | 800 | 0,130 |
| 06928-2250061 | Connecting tube aluminium anodized, grip leg black | 250 | 265 | 800 | 0,148 |
| 06928-2300061 | Connecting tube aluminium anodized, grip leg black | 300 | 315 | 800 | 0,165 |
| 06928-2350061 | Connecting tube aluminium anodized, grip leg black | 350 | 365 | 800 | 0,184 |
| 06928-2400061 | Connecting tube aluminium anodized, grip leg black | 400 | 415 | 800 | 0,201 |
| 06928-2150062 | Connecting tube aluminium anodized, grip leg aluminium colour | 150 | 165 | 800 | 0,112 |
| 06928-2200062 | Connecting tube aluminium anodized, grip leg aluminium colour | 200 | 215 | 800 | 0,130 |
| 06928-2250062 | Connecting tube aluminium anodized, grip leg aluminium colour | 250 | 265 | 800 | 0,148 |
| 06928-2300062 | Connecting tube aluminium anodized, grip leg aluminium colour | 300 | 315 | 800 | 0,165 |
| 06928-2350062 | Connecting tube aluminium anodized, grip leg aluminium colour | 350 | 365 | 800 | 0,184 |
| 06928-2400062 | Connecting tube aluminium anodized, grip leg aluminium colour | 400 | 415 | 800 | 0,201 |
| 06928-2150063 | Connecting tube stainless steel, grip leg black | 150 | 165 | 800 | 0,208 |
| 06928-2200063 | Connecting tube stainless steel, grip leg black | 200 | 215 | 800 | 0,261 |
| 06928-2250063 | Connecting tube stainless steel, grip leg black | 250 | 265 | 800 | 0,314 |
| 06928-2300063 | Connecting tube stainless steel, grip leg black | 300 | 315 | 800 | 0,367 |
| 06928-2350063 | Connecting tube stainless steel, grip leg black | 350 | 365 | 800 | 0,420 |
| 06928-2400063 | Connecting tube stainless steel, grip leg black | 400 | 415 | 800 | 0,473 |

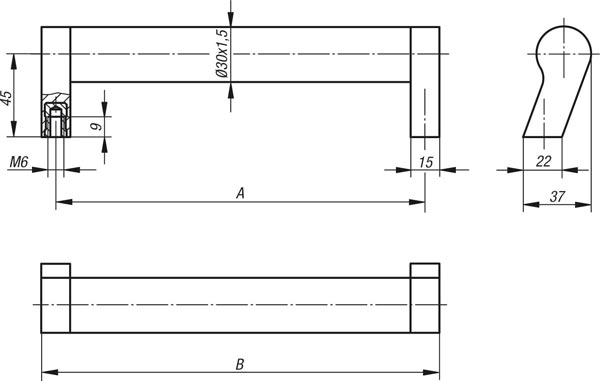

Konstruktion
