Bogengriffe_1
Artikelnummer: 06908
Produktinfo
Material
Glass-ball reinforced thermoplastic.
Yta
matt black.
Notera
Ergonomic and functional bow handles with temperature resistance of -50 °C to +130 °C.
Delivery includes black socket head cap screws DIN 912, nuts DIN 934 and galvanized washers DIN 125 as well as caps.
The models 06908-110006 and 06908-210006 are supplied without cover caps.

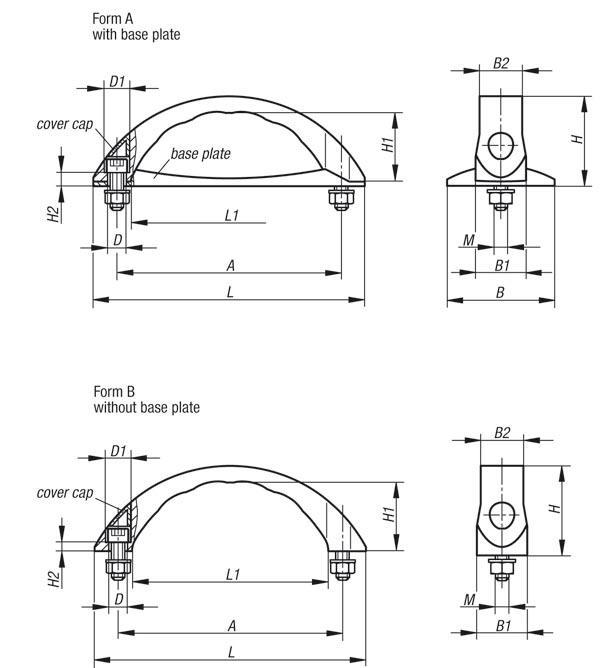

| Order No. | Form | A | B | B1 | B2 | D | D1 | H | H1 | H2 | L | L1 | M | Load bearing capacity N | Approx. weight kg | Surface finish |
|---|
| 06908-110006 | A | 100 | 48 | 23 | 19 | 7 | 11 | 40 | 29 | 6 | 121 | 84 | M6x25 | 600 | 0,079 | without cover cap |
| 06908-112006 | A | 120 | 57 | 28 | 23 | 7 | 12 | 52 | 36 | 7 | 152 | 104 | M6x25 | 600 | 0,132 | with cover cap |
| 06908-114008 | A | 140 | 62 | 31 | 25 | 9,5 | 16 | 56 | 37 | 7,5 | 177 | 122 | M8x30 | 600 | 0,176 | with cover cap |
| 06908-210006 | B | 100 | - | 23 | 19 | 7 | 11 | 38 | 31 | 4 | 121 | 84 | M6x25 | 600 | 0,068 | without cover cap |
| 06908-212006 | B | 120 | - | 28 | 23 | 7 | 12 | 50 | 38 | 5 | 152 | 104 | M6x25 | 600 | 0,095 | with cover cap |
| 06908-214008 | B | 140 | - | 31 | 25 | 9,5 | 16 | 54 | 39 | 5,5 | 177 | 122 | M8x30 | 600 | 0,129 | with cover cap |
