Bogengriffe
Artikelnummer: 06905
Produktinfo
Material
Glass-ball reinforced thermoplastic.
Yta
matt black.
Notera
Ergonomic and functional bow handles with temperature resistance of -50 °C to +130 °C.
Delivery includes black socket head cap screws DIN 912, nuts DIN 934 and galvanized washers DIN 125 as well as caps.
The models 06905-110006 and 06905-112006 are supplied without cover caps.

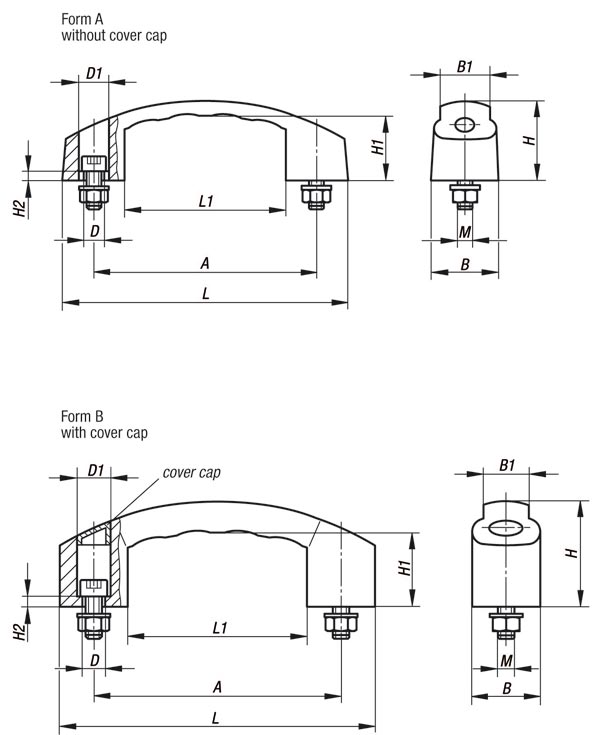

| Order No. | Form | A | B | B1 | D | D1 | H | H1 | H2 | L | L1 | M | Load bearing capacity N | Approx. weight kg |
|---|
| 06905-110006 | A | 100 | 27 | 22 | 7 | 11 | 38 | 29 | 5 | 130 | 79 | M6x25 | 600 | 0,083 |
| 06905-112006 | A | 120 | 29 | 23 | 7 | 11 | 38 | 29 | 8 | 150 | 91 | M6x25 | 600 | 0,089 |
| 06905-212008 | B | 120 | 33 | 22 | 9 | 14 | 51 | 36 | 5 | 153 | 87 | M8x30 | 1000 | 0,121 |
| 06905-214008 | B | 140 | 38 | 26 | 9,5 | 15 | 59 | 42 | 6 | 178 | 101 | M8x30 | 1000 | 0,168 |
Konstruktion
