Handräder

Artikelnummer: 06830

Material
Handwheel in duroplastic PF 31; bush in steel, black oxide finish

Yta
High-polish finish, black

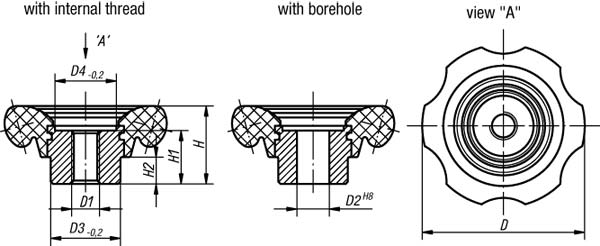

Order No.	Surface finish	D	D2	ToleranceD2	D3	ToleranceD3	D4	ToleranceD4	H2	Approx. weight kg	D1	H	H1
06830-70110	handwheel with internal thread	70	-	H8	30	-0,2	26,5	-0,2	11,5	0,186	M10	33,5	23
06830-70112	handwheel with internal thread	70	-	H8	30	-0,2	26,5	-0,2	11,5	0,183	M12	33,5	23
06830-83112	handwheel with internal thread	83	-	H8	35	-0,2	31,5	-0,2	14	0,325	M12	40	28
06830-83116	handwheel with internal thread	83	-	H8	35	-0,2	31,5	-0,2	14	0,302	M16	40	28
06830-70212	handwheel with borehole	70	12	H8	30	-0,2	26,5	-0,2	11,5	0,183	-	33,5	23
06830-70214	handwheel with borehole	70	14	H8	30	-0,2	26,5	-0,2	11,5	0,173	-	33,5	23
06830-83214	handwheel with borehole	83	14	H8	35	-0,2	31,5	-0,2	14	0,306	-	40	28
06830-83216	handwheel with borehole	83	16	H8	35	-0,2	31,5	-0,2	14	0,302	-	40	28
