T-Griffe
Artikelnummer: 06650
Produktinfo
Material
Black duroplastic PF 31, bush and threaded bolt in galvanized steel
Yta
Deburred and high-polish finish
Notera
The versions 06650-17008 and 06650-18008 have a bush in copper-plated steel.

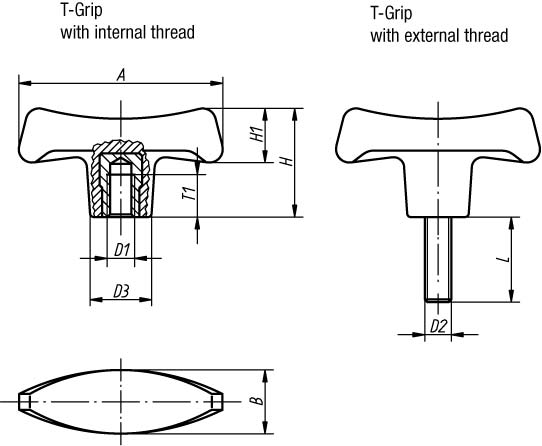

| Order No. | A | B | D3 | T1 | D1 | H | H1 | Surface finish | Approx. weight kg |
|---|
| 06650-17006 | 70 | 22 | 19,6 | 12 | M6 | 38,8 | 20,2 | bush in steel | 0,035 |
| 06650-17008 | 70 | 22 | 19,6 | 14 | M8 | 38,8 | 20,2 | bush in steel | 0,041 |
| 06650-17010 | 70 | 22 | 19,6 | 14 | M10 | 38,8 | 20,2 | bush in steel | 0,040 |
| 06650-18008 | 80 | 25 | 22,3 | 14 | M8 | 44 | 23 | bush in steel | 0,053 |
| 06650-18010 | 80 | 25 | 22,3 | 22 | M10 | 44 | 23 | bush in steel | 0,056 |
| 06650-19010 | 90 | 28 | 25 | 22 | M10 | 49,6 | 26 | bush in steel | 0,072 |
| 06650-19012 | 90 | 28 | 25 | 21 | M12 | 49,6 | 26 | bush in steel | 0,082 |
| Order No. | A | B | D2 | D3 | L = screw length | H | H1 | Surface finish |
|---|
| 06650-27006X18 | 70 | 22 | M6 | 19,6 | 18 | 38,8 | 20,2 | bolt in steel |
| 06650-27008X24 | 70 | 22 | M8 | 19,6 | 24 | 38,8 | 20,2 | bolt in steel |
| 06650-28010X20 | 80 | 25 | M10 | 22,3 | 20 | 44 | 23 | bolt in steel |
| 06650-28010X30 | 80 | 25 | M10 | 22,3 | 30 | 44 | 23 | bolt in steel |
| 06650-29010X30 | 90 | 28 | M10 | 25 | 30 | 49,6 | 26 | bolt in steel |
| 06650-29012X24 | 90 | 28 | M12 | 25 | 24 | 49,6 | 26 | bolt in steel |
