Schaltgriffe flach

Artikelnummer: 06342

Produktinfo

Material
Steel parts quality class 5.8; black ball knob in duroplastic PF 31

Yta
Black oxide finish

Notera
Flat Control Handles can be used for simple clamping applications and switching operations. Generally there must be enough space so that the handle can be turned 360°. The version with star socket is designed to allow turning in steps of 45°.

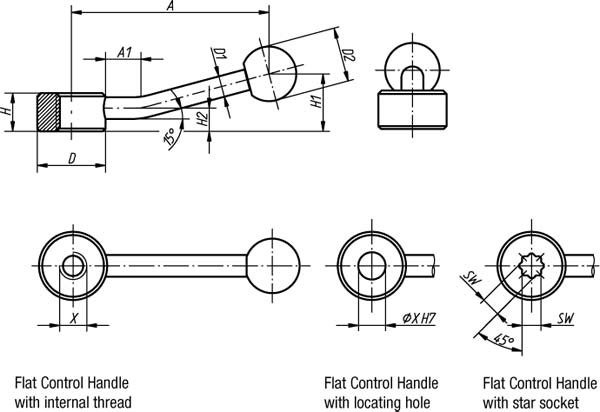

Order No.	Size	X	D	D2	H	H2	A	A1	Approx. weight g	H1	Surface finish	D1
06342-206	1	M6	25	20	14	8,5	75	15	81	22	internal thread	8
06342-208	1	M8	25	20	14	8,5	75	15	78	22	internal thread	8
06342-210	1	M10	25	20	14	8,5	75	15	76	22	internal thread	8
06342-212	2	M12	33	25	17	10	100	15	156	27	internal thread	10
06342-216	2	M16	33	25	17	10	100	15	144	27	internal thread	10
06342-220	3	M20	41	30	20	11,5	128	15	258	36	internal thread	12
06342-224	3	M24	41	30	20	11,5	128	15	246	36	internal thread	12

Order No.	Size	X	ToleranceX	D	D2	H	H2	A	A1	Approx. weight g	H1	Surface finish	D1
06342-106	1	6	H7	25	20	14	8,5	75	15	80	22	locating hole	8
06342-108	1	8	H7	25	20	14	8,5	75	15	78	22	locating hole	8
06342-110	1	10	H7	25	20	14	8,5	75	15	75	22	locating hole	8
06342-112	2	12	H7	33	25	17	10	100	15	152	27	locating hole	10
06342-116	2	16	H7	33	25	17	10	100	15	140	27	locating hole	10
06342-120	3	20	H7	41	30	20	11,5	128	15	248	36	locating hole	12
06342-124	3	24	H7	41	30	20	11,5	128	15	238	36	locating hole	12

Order No.	Size	SW	D	D2	H	H2	A	A1	Approx. weight g	H1	Surface finish	D1
06342-305	1	5,5	25	20	14	8,5	75	15	79	22	star socket	8
06342-307	1	7	25	20	14	8,5	75	15	77	22	star socket	8
06342-309	2	9	33	25	17	10	100	15	154	27	star socket	10
06342-311	2	11	33	25	17	10	100	15	149	27	star socket	10
06342-314	3	14	41	30	20	11,5	128	15	273	36	star socket	12
06342-319	3	19	41	30	20	11,5	128	15	245	36	star socket	12
