Schaltgriffe

Artikelnummer: 06340

Produktinfo

Material
Steel parts quality class 5.8; black plastic ball knob

Yta
Black oxide finish

Notera
Control Handles can be used for simple clamping applications and switching operations. Generally there must be enough space so that the handle can be turned 360°.

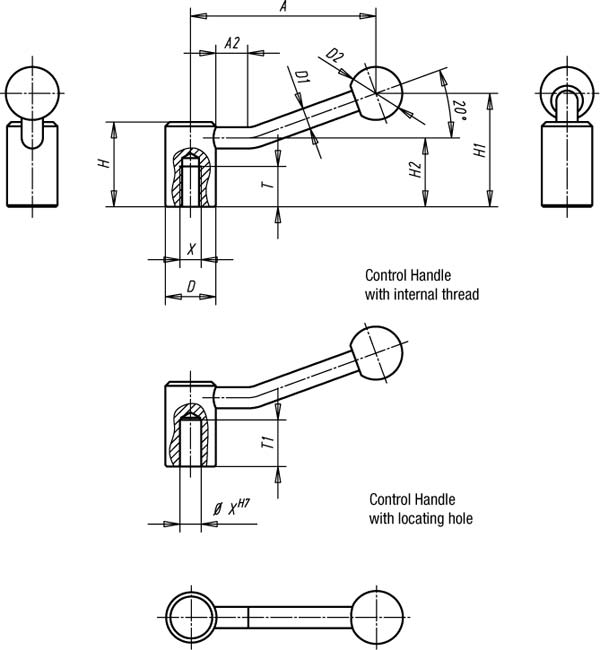

Order No.	Surface finish	X	T	Size	D	D2	H2	A	A2	Approx. weight kg	T1	D1	H	H1
06340-208	internal thread	M8	18	1	24	25	32,5	84,5	15	0,170	-	10	40	52,5
06340-210	internal thread	M10	19	1	24	25	32,5	84,5	15	0,170	-	10	40	52,5
06340-212	internal thread	M12	20	2	28	32	36,5	100	15	0,260	-	12	46	61
06340-216	internal thread	M16	23	3	33	32	41	121	15	0,380	-	13	52	72
06340-220	internal thread	M20	26	4	41	32	49	123	15	0,660	-	13	61	80
06340-108	locating hole	8	-	1	24	25	32,5	84,5	15	0,170	22	10	40	52,5
06340-110	locating hole	10	-	1	24	25	32,5	84,5	15	0,170	22	10	40	52,5
06340-112	locating hole	12	-	2	28	32	36,5	100	15	0,260	25	12	46	61
06340-114	locating hole	14	-	2	28	32	36,5	100	15	0,260	25	12	46	61
06340-116	locating hole	16	-	3	33	32	41	121	15	0,380	28	13	52	72
06340-118	locating hole	18	-	3	33	32	41	121	15	0,380	28	13	52	72
06340-120	locating hole	20	-	4	41	32	49	123	15	0,660	32	13	61	80
