Vorlegscheiben
Artikelnummer: 07375
Produktinfo
Notera

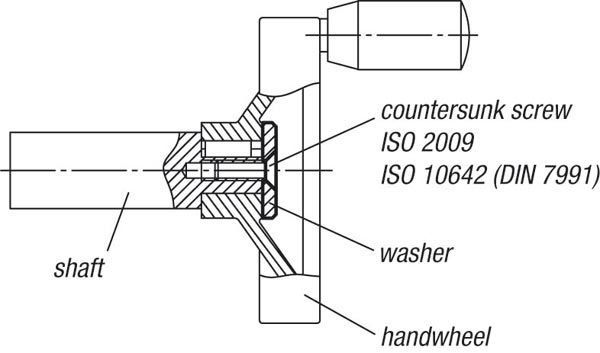

Together with a countersunk screw DIN EN ISO 2009 or DIN EN ISO 10642 the washers are used at the front surface of shaft extensions for axial fastening and securing of handwheels and handles using a hub slot.
The washers can be used with the handwheels 06262, 06263, 06264, 06265, 06271, 06273, 06275, 06277, 06279, 06287, 06288 and crank handles 06500, 06502.

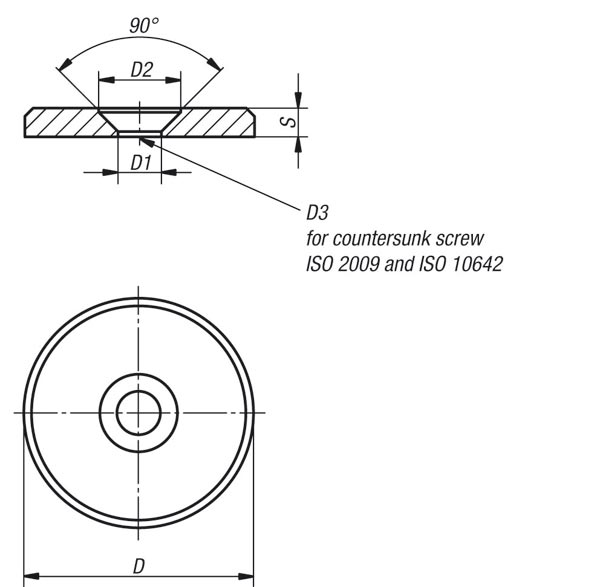

| Order No. | D | D1 | D2 | D3 | S | Material |
|---|
| 07375-00416 | 16 | 4,3 | 8,4 | M4 | 3 | steel |
| 07375-00420 | 20 | 4,3 | 8,4 | M4 | 3 | steel |
| 07375-00522 | 22 | 5,3 | 10 | M5 | 3,5 | steel |
| 07375-00525 | 25 | 5,3 | 10 | M5 | 3,5 | steel |
| 07375-00528 | 28 | 5,3 | 10 | M5 | 3,5 | steel |
| 07375-00632 | 32 | 6,4 | 12 | M6 | 4 | steel |
| 07375-00636 | 36 | 6,4 | 12 | M6 | 4 | steel |
| 07375-00640 | 40 | 6,4 | 12 | M6 | 5 | steel |
| 07375-00645 | 45 | 6,4 | 12 | M6 | 6 | steel |
| 07375-00652 | 52 | 6,4 | 12 | M6 | 6 | steel |
| 07375-10416 | 16 | 4,3 | 8,4 | M4 | 3 | stainless steel |
| 07375-10420 | 20 | 4,3 | 8,4 | M4 | 3 | stainless steel |
| 07375-10522 | 22 | 5,3 | 10 | M5 | 3,5 | stainless steel |
| 07375-10525 | 25 | 5,3 | 10 | M5 | 3,5 | stainless steel |
| 07375-10528 | 28 | 5,3 | 10 | M5 | 3,5 | stainless steel |
| 07375-10632 | 32 | 6,4 | 12 | M6 | 4 | stainless steel |
| 07375-10636 | 36 | 6,4 | 12 | M6 | 4 | stainless steel |
| 07375-10640 | 40 | 6,4 | 12 | M6 | 5 | stainless steel |
| 07375-10645 | 45 | 6,4 | 12 | M6 | 6 | stainless steel |
| 07375-10652 | 52 | 6,4 | 12 | M6 | 6 | stainless steel |
Konstruktion
