Schnellspann-Sterngriffe
Artikelnummer: 06222
Produktinfo
Material
Black thermoplastic; bush in steel
Yta
Bush galvanized and blue chromated
Notera
Quick-Acting Star Grips are mainly used in applications where no high clamping pressures are requried.
This function is achieved by means of a semilateral thread.

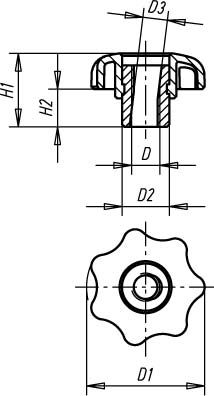

| Order No. | D | D2 | D3 | H2 | Approx. weight kg | D1 | H1 |
|---|
| 06222-05 | M5 | 10 | 5,2 | 8 | 0,008 | 25 | 15,5 |
| 06222-06 | M6 | 12 | 6,2 | 10 | 0,013 | 32 | 19,5 |
| 06222-08 | M8 | 13,5 | 8,3 | 13 | 0,020 | 40 | 24,5 |
| 06222-10 | M10 | 19 | 10,3 | 17 | 0,055 | 50 | 31 |
| 06222-12 | M12 | 19 | 12,3 | 21 | 0,068 | 63 | 39,5 |
