Sterngriffe mit vorstehender Stahlbuchse

Artikelnummer: 06210

Material
Black thermoplastic; steel parts quality class 5.8 or in stainless steel 1.4305

Yta
Steel parts blue chromated or in stainless steel natural finish

Notera
Star Grips with projecting steel bush are especially suitable for cross pin connections.

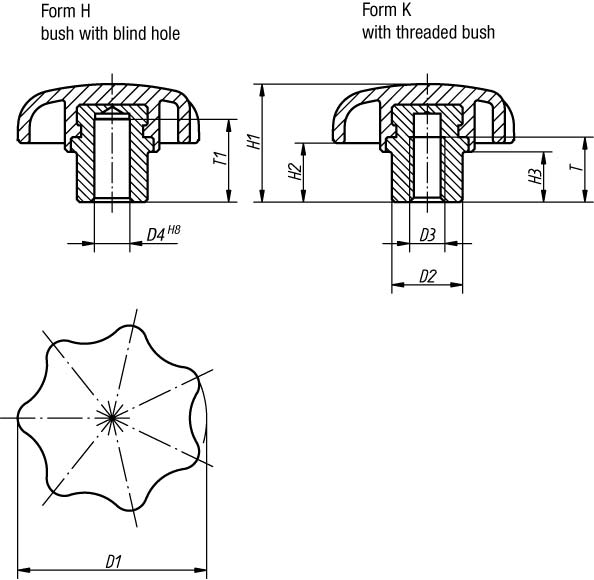

Order No.	Surface finish	D4	ToleranceD4	T1	D2	H2	H3	Approx. weight g	Form	D1	H1
06210-105	bush steel	5	H8	9,5	10	8	6	8	H	25	16
06210-106	bush steel	6	H8	12	12	10	8,5	14,8	H	32	20
06210-1061	bush steel	6	H8	14	13,5	13	10	24,8	H	40	25
06210-108	bush steel	8	H8	14	13,5	13	10	24,8	H	40	25
06210-1081	bush steel	8	H8	18	19	17	12	51,9	H	50	32
06210-110	bush steel	10	H8	18	19	17	12	51,9	H	50	32
06210-1101	bush steel	10	H8	22	19	21	15	83,8	H	63	40
06210-112	bush steel	12	H8	22	19	21	15	83,8	H	63	40
06210-116	bush steel	16	H8	22	23	21	15	92,5	H	63	40

Order No.	Surface finish	D3	ToleranceD4	T	D2	H2	H3	Approx. weight g	Form	D1	H1
06210-205	bush steel	M5	H8	8,5	10	8	6	8,6	K	25	16
06210-206	bush steel	M6	H8	12	12	10	8,5	15,2	K	32	20
06210-2061	bush steel	M6	H8	14	13,5	13	10	26	K	40	25
06210-208	bush steel	M8	H8	14	13,5	13	10	26	K	40	25
06210-2081	bush steel	M8	H8	18	19	17	12	52,3	K	50	32
06210-210	bush steel	M10	H8	18	19	17	12	52,3	K	50	32
06210-2101	bush steel	M10	H8	22	19	21	15	84,6	K	63	40
06210-212	bush steel	M12	H8	22	19	21	15	84,6	K	63	40
06210-216	bush steel	M16	H8	22	23	21	15	94,5	K	63	40
06210-305	bush stainless steel	M5	H8	8,5	10	8	6	8,6	K	25	16
06210-306	bush stainless steel	M6	H8	12	12	10	8,5	15,2	K	32	20
06210-3061	bush stainless steel	M6	H8	14	13,5	13	10	26	K	40	25
06210-308	bush stainless steel	M8	H8	14	13,5	13	10	26	K	40	25
06210-3081	bush stainless steel	M8	H8	18	19	17	12	52,3	K	50	32
06210-310	bush stainless steel	M10	H8	18	19	17	12	52,3	K	50	32
06210-3101	bush stainless steel	M10	H8	22	19	21	15	84,6	K	63	40
06210-312	bush stainless steel	M12	H8	22	19	21	15	84,6	K	63	40
06210-316	bush stainless steel	M16	H8	22	23	21	15	94,5	K	63	40
