Sterngriffe ähnlich DIN 6336_1

Artikelnummer: 06208

Material
Duroplastic PF 31, black; bush and threaded bolt in steel galvanized and blue chromated

Yta
Deburred and high-polish finish

Notera
The version 06208-22004 has a bush in copper-plated steel.

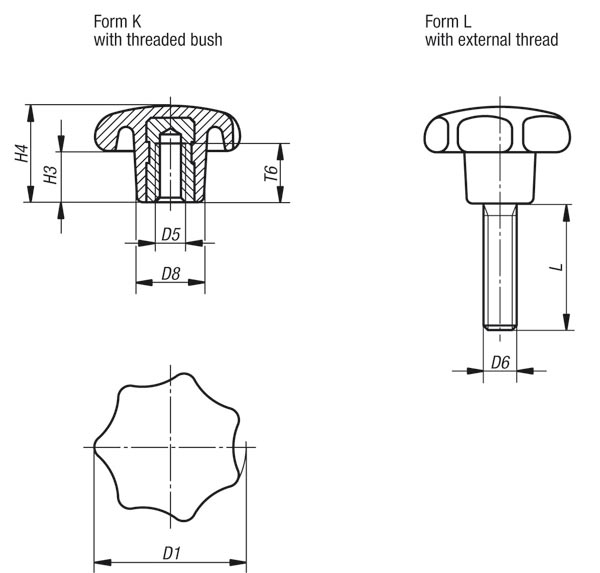

Order No.	Form	D1	D5	D8	H3	H4	T6	Approx. weight kg
06208-22004	K	20	M4	10	7	13	6,5	0,003
06208-22505	K	25	M5	12	8	16	9,5	0,007
06208-23206	K	32	M6	14	10	20	12	0,011
06208-24008	K	40	M8	18	13	25	14	0,022
06208-25010	K	50	M10	22	17	32	18	0,040
06208-26312	K	63	M12	26	21	40	22	0,083
06208-28016	K	80	M16	35	25	50	30	0,155

Order No.	Form	D1	D8	H3	H4	Approx. weight kg	D6	L
06208-42505X15	L	25	12	8	16	0,009	M5	15
06208-42505X20	L	25	12	8	16	0,010	M5	20
06208-42505X25	L	25	12	8	16	0,010	M5	25
06208-43206X15	L	32	14	10	20	0,013	M6	15
06208-43206X20	L	32	14	10	20	0,014	M6	20
06208-43206X25	L	32	14	10	20	0,015	M6	25
06208-43206X30	L	32	14	10	20	0,016	M6	30
06208-44008X20	L	40	18	13	25	0,028	M8	20
06208-44008X25	L	40	18	13	25	0,030	M8	25
06208-44008X30	L	40	18	13	25	0,031	M8	30
06208-44008X35	L	40	18	13	25	0,032	M8	35
06208-44008X40	L	40	18	13	25	0,034	M8	40
06208-45010X25	L	50	22	17	32	0,055	M10	25
06208-45010X30	L	50	22	17	32	0,057	M10	30
06208-45010X35	L	50	22	17	32	0,061	M10	35
06208-45010X40	L	50	22	17	32	0,062	M10	40
06208-45010X50	L	50	22	17	32	0,065	M10	50
06208-46312X30	L	63	26	21	40	0,100	M12	30
06208-46312X35	L	63	26	21	40	0,104	M12	35
06208-46312X40	L	63	26	21	40	0,106	M12	40
06208-46312X50	L	63	26	21	40	0,117	M12	50
06208-46312X60	L	63	26	21	40	0,121	M12	60
06208-48016X30	L	80	35	25	50	0,207	M16	30
06208-48016X40	L	80	35	25	50	0,222	M16	40
06208-48016X50	L	80	35	25	50	0,230	M16	50
06208-48016X60	L	80	35	25	50	0,245	M16	60
