Sterngriffe ähnlich DIN 6336 Nirosta

Artikelnummer: 06194

Sterngriffe ähnlich DIN 6336 Nirosta

Produktinfo

Material
Stainless steel 1.4308

Yta
Ground and polished

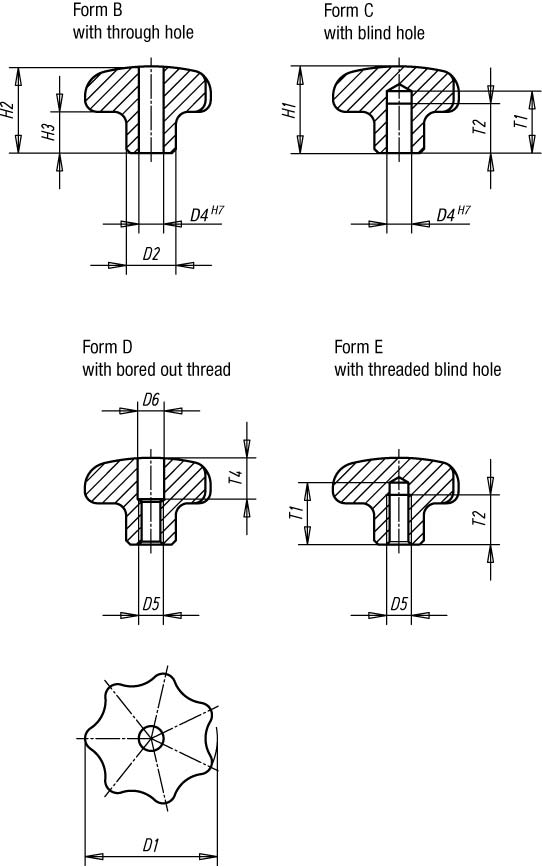

Order No.	Surface finish	D2	D4	ToleranceD4	H2	H3	T1	T2	Approx. weight kg Form B	Form	D1	H1
06194-232062	polished	12	6	H7	20	10	-	-	0,052	B	32	-
06194-240082	polished	14	8	H7	25	13	-	-	0,098	B	40	-
06194-250102	polished	18	10	H7	32	17	-	-	0,200	B	50	-
06194-263122	polished	20	12	H7	40	21	-	-	0,367	B	63	-

Order No.	Surface finish	D2	D4	ToleranceD4	H2	H3	T1	T2	Form	D1	H1
06194-332062	polished	12	6	H7	-	10	15	12	C	32	21
06194-340082	polished	14	8	H7	-	13	18	15	C	40	26
06194-350102	polished	18	10	H7	-	17	21	18	C	50	34
06194-363122	polished	20	12	H7	-	21	25	22	C	63	42

Order No.	Surface finish	D2	D5	D6	H2	H3	T1	T2	T4	Form	D1	H1
06194-432062	polished	12	M6	6,4	20	10	-	-	10	D	32	-
06194-440082	polished	14	M8	8,4	25	13	-	-	12	D	40	-
06194-450102	polished	18	M10	10,5	32	17	-	-	16	D	50	-
06194-463122	polished	20	M12	13	40	21	-	-	20	D	63	-

Order No.	Surface finish	D2	D5	D6	H2	H3	T1	T2	T4	Price_Nox	Form	D1	H1
06194-532062	polished	12	M6	-	-	10	15	12	-	5,89	E	32	21
06194-540082	polished	14	M8	-	-	13	18	15	-	7,43	E	40	26
06194-550102	polished	18	M10	-	-	17	21	18	-	8,79	E	50	34
06194-563122	polished	20	M12	-	-	21	25	22	-	11,14	E	63	42
