Sterngriffe ähnlich DIN 6336 aus Aluminium

Artikelnummer: 06192

Sterngriffe ähnlich DIN 6336 aus Aluminium

Produktinfo

Material
Aluminium

Yta
Natural finish tumbled or ground and polished

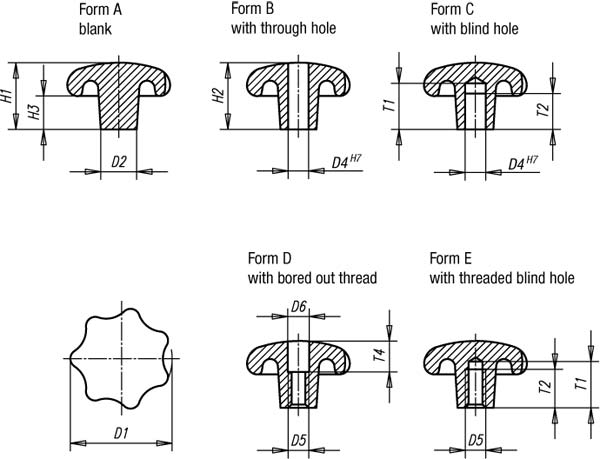

Order No.	Surface finish	D2	H3	Approx. weight kg	Form	D1	H1
06192-14008	tumbled	14	13	0,035	A	40	26
06192-15010	tumbled	18	17	0,065	A	50	34
06192-16312	tumbled	20	21	0,100	A	63	42
06192-18016	tumbled	25	25	0,220	A	80	52

Order No.	Surface finish	D2	D4	H2	H3	ToleranceD4	Form	D1
06192-24008	tumbled	14	8	25	13	H7	B	40
06192-25010	tumbled	18	10	32	17	H7	B	50
06192-26312	tumbled	20	12	40	21	H7	B	63
06192-28016	tumbled	25	16	50	25	H7	B	80
06192-240082	polished	14	8	25	13	H7	B	40
06192-250102	polished	18	10	32	17	H7	B	50
06192-263122	polished	20	12	40	21	H7	B	63
06192-280162	polished	25	16	50	25	H7	B	80

Order No.	Surface finish	D2	D4	ToleranceD4	H3	T1	T2	Form	D1	H1
06192-34008	tumbled	14	8	H7	13	18	15	C	40	26
06192-35010	tumbled	18	10	H7	17	21	18	C	50	34
06192-36312	tumbled	20	12	H7	21	25	22	C	63	42
06192-38016	tumbled	25	16	H7	25	32	28	C	80	52
06192-340082	polished	14	8	H7	13	18	15	C	40	26
06192-350102	polished	18	10	H7	17	21	18	C	50	34
06192-363122	polished	20	12	H7	21	25	22	C	63	42
06192-380162	polished	25	16	H7	25	32	28	C	80	52

Order No.	Surface finish	D2	D5	D6	H2	H3	T4	Form	D1
06192-44008	tumbled	14	M8	8,4	25	13	12	D	40
06192-45010	tumbled	18	M10	10,5	32	17	16	D	50
06192-46312	tumbled	20	M12	13	40	21	20	D	63
06192-48016	tumbled	25	M16	17	50	25	30	D	80
06192-440082	polished	14	M8	8,4	25	13	12	D	40
06192-450102	polished	18	M10	10,5	32	17	16	D	50
06192-463122	polished	20	M12	13	40	21	20	D	63
06192-480162	polished	25	M16	17	50	25	30	D	80

Order No.	Surface finish	D2	D5	H3	T1	T2	Form	D1	H1
06192-54008	tumbled	14	M8	13	18	15	E	40	26
06192-55010	tumbled	18	M10	17	21	18	E	50	34
06192-56312	tumbled	20	M12	21	25	22	E	63	42
06192-58016	tumbled	25	M16	25	32	28	E	80	52
06192-540082	polished	14	M8	13	18	15	E	40	26
06192-550102	polished	18	M10	17	21	18	E	50	34
06192-563122	polished	20	M12	21	25	22	E	63	42
06192-580162	polished	25	M16	25	32	28	E	80	52
