Kreuzgriffe ähnlich DIN 6335 Nirosta

Artikelnummer: 06158

Kreuzgriffe ähnlich DIN 6335 Nirosta

Produktinfo

Material
Stainless steel 1.4308

Yta
Ground and polished

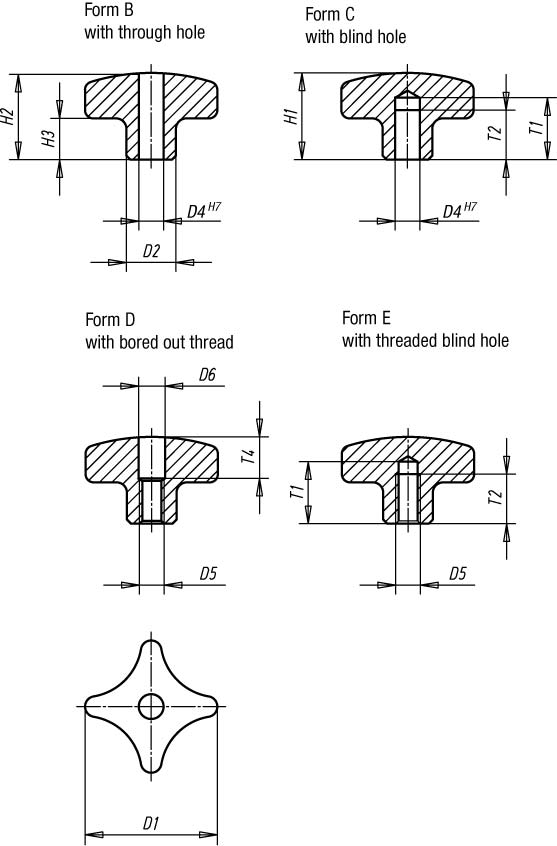

Order No.	Surface finish	D2	D4	H2	H3	T1	T2	ToleranceD4	Approx. weight kg Form B	Form	D1	H1
06158-2032062	polished	12	6	20	10	-	-	H7	0,037	B	32	-
06158-2040082	polished	14	8	25	13	-	-	H7	0,058	B	40	-
06158-2050102	polished	18	10	32	17	-	-	H7	0,109	B	50	-
06158-2063122	polished	20	12	40	21	-	-	H7	0,197	B	63	-

Order No.	Surface finish	D2	D4	H2	H3	T1	T2	ToleranceD4	Form	D1	H1
06158-3032062	polished	12	6	-	10	15	12	H7	C	32	21
06158-3040082	polished	14	8	-	13	18	15	H7	C	40	26
06158-3050102	polished	18	10	-	17	21	18	H7	C	50	34
06158-3063122	polished	20	12	-	21	25	22	H7	C	63	42

Order No.	Surface finish	D2	D5	D6	H2	H3	T1	T2	T4	Form	D1	H1
06158-4032062	polished	12	M6	6,4	20	10	-	-	10	D	32	-
06158-4040082	polished	14	M8	8,4	25	13	-	-	12	D	40	-
06158-4050102	polished	18	M10	10,5	32	17	-	-	16	D	50	-
06158-4063122	polished	20	M12	13	40	21	-	-	20	D	63	-

Order No.	Surface finish	D2	D5	D6	H2	H3	T1	T2	T4	Price_Nox	Form	D1	H1
06158-5032062	polished	12	M6	-	-	10	15	12	-	6,17	E	32	21
06158-5040082	polished	14	M8	-	-	13	18	15	-	7,81	E	40	26
06158-5050102	polished	18	M10	-	-	17	21	18	-	9,21	E	50	34
06158-5063122	polished	20	M12	-	-	21	25	22	-	11,30	E	63	42
