Kreuzgriffe ähnlich DIN 6335 aus Aluminium

Artikelnummer: 06156

Kreuzgriffe ähnlich DIN 6335 aus Aluminium

Produktinfo

Material
Aluminium

Yta
Natural finish tumbled or ground and polished

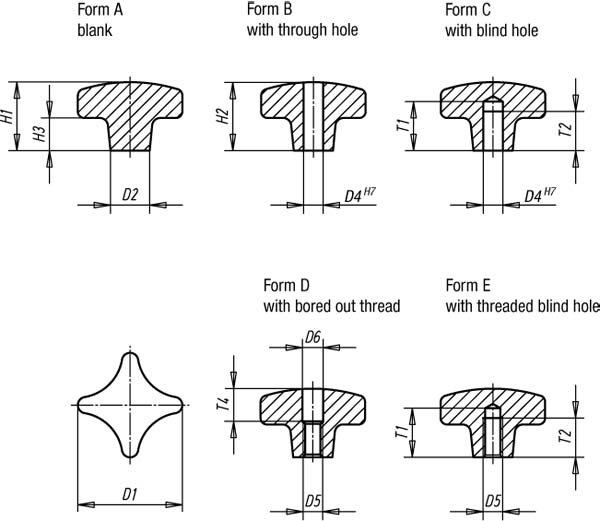

Order No.	Surface finish	D2	H3	Approx. weight kg	Form	D1	H1
06156-104008	tumbled	14	14	0,030	A	40	26
06156-105010	tumbled	18	20	0,060	A	50	34
06156-106312	tumbled	20	25	0,090	A	63	42
06156-108016	tumbled	25	30	0,180	A	80	52

Order No.	Surface finish	D2	D4	H2	H3	ToleranceD4	Form	D1
06156-204008	tumbled	14	8	25	14	H7	B	40
06156-205010	tumbled	18	10	32	20	H7	B	50
06156-206312	tumbled	20	12	40	25	H7	B	63
06156-208016	tumbled	25	16	50	30	H7	B	80
06156-2040082	polished	14	8	25	14	H7	B	40
06156-2050102	polished	18	10	32	20	H7	B	50
06156-2063122	polished	20	12	40	25	H7	B	63
06156-2080162	polished	25	16	50	30	H7	B	80

Order No.	Surface finish	D2	D4	H3	T1	T2	ToleranceD4	Form	D1	H1
06156-304008	tumbled	14	8	14	18	15	H7	C	40	26
06156-305010	tumbled	18	10	20	21	18	H7	C	50	34
06156-306312	tumbled	20	12	25	25	22	H7	C	63	42
06156-308016	tumbled	25	16	30	32	28	H7	C	80	52
06156-3040082	polished	14	8	14	18	15	H7	C	40	26
06156-3050102	polished	18	10	20	21	18	H7	C	50	34
06156-3063122	polished	20	12	25	25	22	H7	C	63	42
06156-3080162	polished	25	16	30	32	28	H7	C	80	52

Order No.	Surface finish	D2	D5	D6	H2	H3	T4	Form	D1
06156-404008	tumbled	14	M8	8,4	25	14	12	D	40
06156-405010	tumbled	18	M10	10,5	32	20	16	D	50
06156-406312	tumbled	20	M12	13	40	25	20	D	63
06156-408016	tumbled	25	M16	17	50	30	30	D	80
06156-4040082	polished	14	M8	8,4	25	14	12	D	40
06156-4050102	polished	18	M10	10,5	32	20	16	D	50
06156-4063122	polished	20	M12	13	40	25	20	D	63
06156-4080162	polished	25	M16	17	50	30	30	D	80

Order No.	Surface finish	D2	D5	H3	T1	T2	Form	D1	H1
06156-504008	tumbled	14	M8	14	18	15	E	40	26
06156-505010	tumbled	18	M10	20	21	18	E	50	34
06156-506312	tumbled	20	M12	25	25	22	E	63	42
06156-508016	tumbled	25	M16	30	32	28	E	80	52
06156-5040082	polished	14	M8	14	18	15	E	40	26
06156-5050102	polished	18	M10	20	21	18	E	50	34
06156-5063122	polished	20	M12	25	25	22	E	63	42
06156-5080162	polished	25	M16	30	32	28	E	80	52
