Schnellspann-Rändelmuttern
Artikelnummer: 06030
Produktinfo
Material
Tempered steel
Yta
Heat-treated and black oxide finish
Notera

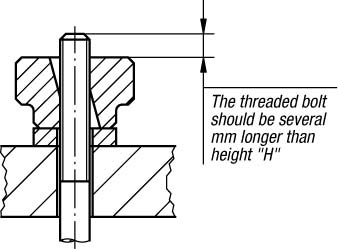

Quick-Acting Knurled Nuts are mainly used in applications where no high clamping pressures are required.
This function is achieved by means of a semilateral thread.
| Order No. | D2 | D3 | D4 | K | Approx. weight g | D1 | H |
|---|
| 06030-05 | 20 | 14 | 5,2 | 8 | 25 | M5 | 12 |
| 06030-06 | 24 | 16 | 6,2 | 10 | 38 | M6 | 14 |
| 06030-08 | 30 | 20 | 8,2 | 12 | 75 | M8 | 17 |
| 06030-10 | 36 | 28 | 10,3 | 14 | 130 | M10 | 20 |
| 06030-12 | 40 | 32 | 12,3 | 16 | 185 | M12 | 24 |
