Multiverbindungsstücke
Artikelnummer: 06622
Produktinfo
Notera

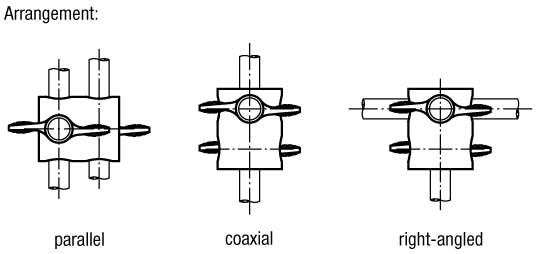

Multiple Connectors are used to extend round cross sections (bars, tubes, etc.) in a coaxial or parallel arrangement.
A parallel arrangement of bars, for example, can also be used to strengthen or stiffen an assembly.
The locating hole system in the main body also makes it possible to produce right-angled connections.

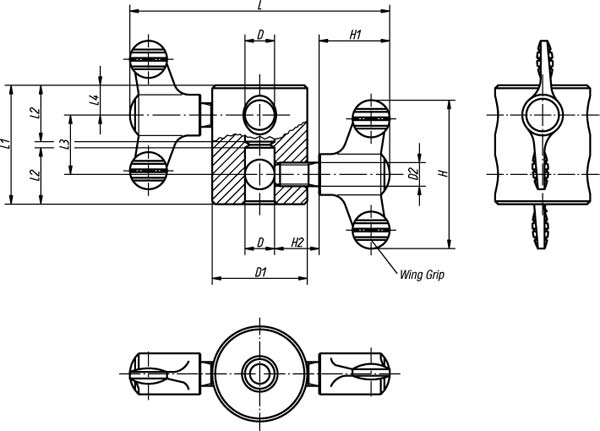

| Order No. | Size | D | D2 | L | L1 | L3 | L4 | H2 | Approx. weight kg | D1 | L2 | H | H1 |
|---|
| 06622-01 | 1 | 8 | M8 | 86 | 36 | 20 | 8 | 15 | 0,074 | 28 | 17 | 50 | 24 |
| 06622-02 | 2 | 10 | M8 | 88 | 40 | 20 | 10 | 15 | 0,093 | 32 | 19 | 50 | 24 |
| 06622-03 | 3 | 12 | M8 | 90 | 44 | 20 | 12 | 15 | 0,118 | 36 | 21 | 50 | 24 |
| 06622-04 | 4 | 16 | M10 | 127,2 | 56 | 24 | 16 | 20 | 0,262 | 45 | 27 | 75 | 35,6 |
Konstruktion
