Stahlklemmhebel mit Innengewinde
Artikelnummer: 06440
Produktinfo
Material
Handle in 1.0503 or in stainless steel 1.4308; all other steel parts quality class 5.8 or in stainless steel 1.4305
Yta
Handle painted silver-grey with hammertone finish, steel parts black oxide finish;
Handle in stainless steel electrolytic-polish, steel parts natural finish

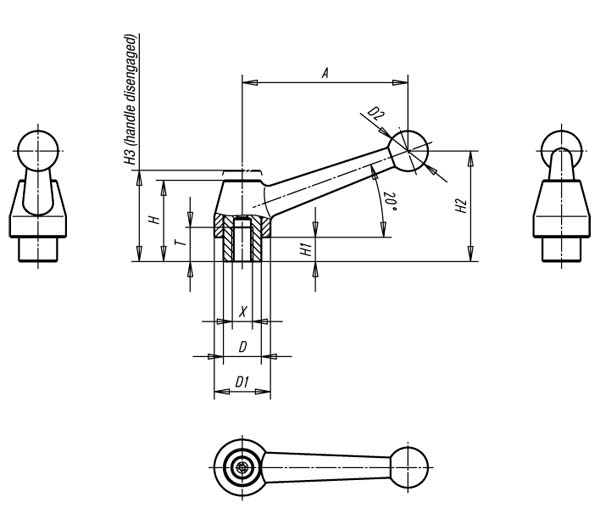

| Order No. | Size | Internal thread X | T | D | D2 | H2 | H3 | A | No. of teeth | Approx. weight kg | D1 | H | H1 | Surface finish |
|---|
| 06440-108 | 1 | M8 | 17 | 19 | 20 | 54 | 49 | 83 | 24 | 0,230 | 28 | 41 | 12 | steel silver-grey |
| 06440-110 | 1 | M10 | 17 | 19 | 20 | 54 | 49 | 83 | 24 | 0,230 | 28 | 41 | 12 | steel silver-grey |
| 06440-112 | 1 | M12 | 17 | 19 | 20 | 54 | 49 | 83 | 24 | 0,230 | 28 | 41 | 12 | steel silver-grey |
| 06440-212 | 2 | M12 | 23 | 23 | 25 | 69 | 56 | 108 | 26 | 0,440 | 35 | 50 | 12 | steel silver-grey |
| 06440-216 | 2 | M16 | 23 | 23 | 25 | 69 | 56 | 108 | 26 | 0,440 | 35 | 50 | 12 | steel silver-grey |
| 06440-316 | 3 | M16 | 27 | 30 | 30 | 78 | 65 | 132 | 36 | 0,730 | 43 | 58,5 | 12 | steel silver-grey |
| 06440-320 | 3 | M20 | 27 | 30 | 30 | 78 | 65 | 132 | 36 | 0,730 | 43 | 58,5 | 12 | steel silver-grey |
| 06440-1108 | 1 | M8 | 17 | 19 | 20 | 54 | 49 | 83 | 24 | 0,230 | 28 | 41 | 12 | stainless steel electrolytic-polish |
| 06440-1110 | 1 | M10 | 17 | 19 | 20 | 54 | 49 | 83 | 24 | 0,230 | 28 | 41 | 12 | stainless steel electrolytic-polish |
| 06440-1112 | 1 | M12 | 17 | 19 | 20 | 54 | 49 | 83 | 24 | 0,230 | 28 | 41 | 12 | stainless steel electrolytic-polish |
