Exzenterspanner mit Mittelspannung
Artikelnummer: 04350
Produktinfo
Material
Eccentric lever tempered steel 1.7220,
strap tempered steel 1.1191
Yta
Black oxide finish

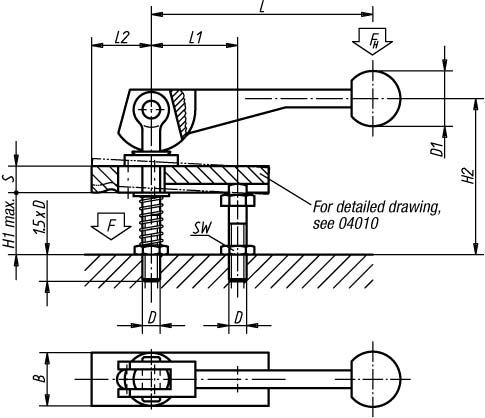

| Order No. | L | L1 | B | S | H2 | D | SW | Approx. weight kg | H1 max. | D1 | L2 |
|---|
| 04350-08 | 100 | 39 | 20 | 12 | 74 | M8 | 13 | 0,300 | 28 | 25 | 37 |
| 04350-10 | 120 | 49 | 25 | 16 | 92 | M10 | 17 | 0,600 | 39 | 30 | 46 |
| 04350-12 | 138,5 | 61 | 32 | 20 | 120 | M12 | 19 | 1,100 | 49 | 30 | 58 |
Konstruktion
