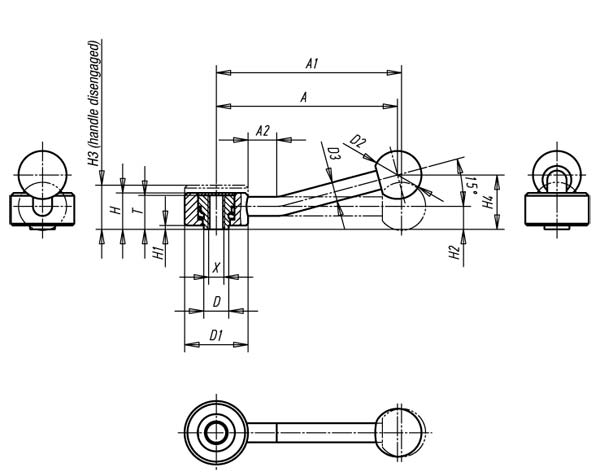

Flachspannhebel mit Innengewinde

Artikelnummer: 06390

Material
Steel parts quality class 5.8, black plastic ball knob

Yta
Black oxide finish

Order No.	Size	Internal thread X	T	D	D2	D3	H2	H3	H4	A	A1	A2	No. of teeth	Approx. weight kg	Surface finish	D1	H	H1
06390-1061	1	M6	18	13,5	25	10	12	23	-	-	102	-	20	0,160	0 degree	33	19	2
06390-1081	1	M8	18	13,5	25	10	12	23	-	-	102	-	20	0,160	0 degree	33	19	2
06390-2101	2	M10	21	19	30	12	13,5	26	-	-	131	-	24	0,290	0 degree	41	22	2
06390-2121	2	M12	21	19	30	12	13,5	26	-	-	131	-	24	0,290	0 degree	41	22	2
06390-3121	3	M12	27	23	37	14	17	33	-	-	148	-	26	0,450	0 degree	45	28	2
06390-3161	3	M16	27	23	37	14	17	33	-	-	148	-	26	0,450	0 degree	45	28	2
06390-1062	1	M6	18	13,5	25	10	12	23	29	100	-	15	20	0,160	15 degrees	33	19	2
06390-1082	1	M8	18	13,5	25	10	12	23	29	100	-	15	20	0,160	15 degrees	33	19	2
06390-2102	2	M10	21	19	30	12	13,5	26	38	127	-	15	24	0,290	15 degrees	41	22	2
06390-2122	2	M12	21	19	30	12	13,5	26	38	127	-	15	24	0,290	15 degrees	41	22	2
06390-3122	3	M12	27	23	37	14	17	33	48	145	-	15	26	0,450	15 degrees	45	28	2
06390-3162	3	M16	27	23	37	14	17	33	48	145	-	15	26	0,450	15 degrees	45	28	2
