Schnellspanner vertikal mit senkrechtem Fuß und verstellbarer Andruckspindel_1
Artikelnummer: 05912
Produktinfo
Material
Steel;
polyamide handle element
Yta
Nitro-carburized and black oxidized
Notera
Maintenance-free, high-quality swivel bushings. Consistently constant use of force when opening and closing. Optimum stability is achieved through the conical clamping arm with U-profile.
See 05280, 07110, 07119, 07120, 07121, 07140, 07142 for accessories.

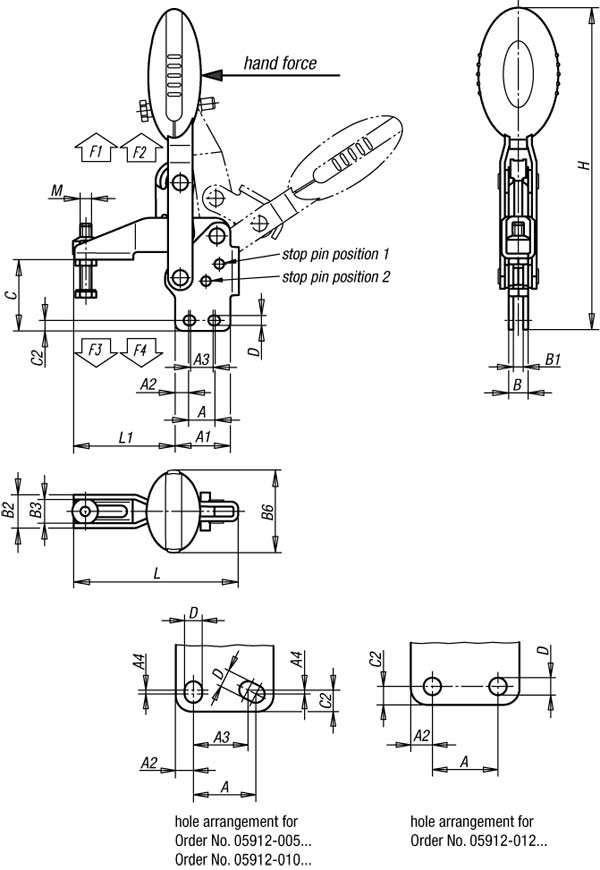

Order No. | M | A | A1 | A2 | A3 | A4 | B | B1 | B2 | B3 | B6 | C | C2 | D | H | L | L1 | Opening angle of holding arm position 1 | Opening angle of holding arm position 2 | Opening angle of holding arm stop pin removed | Opening angle of handle position 1 | Opening angle of handle position 2 | Hand force N | Holding force F1 N | Holding force F2 N | Clamping force F3 N | Clamping force F4 N |
05912-005001 | M5x25 | 16 | 25 | 4,5 | 14 | 1 | 8,1 | 4,1 | 13,2 | 9,1 | 22,5 | 30,8 | 5,5 | 4,5 | 120,3 | 63,5 | 35 | 100° | - | 133° | 64° | - | 100 | 750 | 1050 | 620 | 750 |
05912-006001 | M6x35 | 14 | 29 | 7 | 12 | - | 10,2 | 5,2 | 17,5 | 12,4 | 43,5 | 37,6 | 5,5 | 5,5 | 169,1 | 86,5 | 53 | 56° | 83° | 156° | 46° | 56° | 160 | 1350 | 1650 | 920 | 1050 |
05912-008001 | M8x45 | 21 | 39 | 9 | 19 | - | 10,2 | 5,2 | 20,6 | 15,5 | 41,5 | 49 | 6,5 | 6,8 | 200,1 | 107 | 62 | 13° | 93° | 157° | 16° | 61° | 190 | 2000 | 2800 | 940 | 1350 |
05912-010001 | M10x55 | 32 | 50 | 8 | 27 | 3,5 | 14,1 | 7,1 | 25,5 | 18,4 | 47 | 62,3 | 13 | 9 | 247,4 | 153 | 95 | 6° | 97° | 176° | 19° | 59° | 250 | 2500 | 4500 | 1500 | 2800 |
05912-012001 | M12x70 | 32 | 53 | 10,5 | - | - | 14,1 | 7,1 | 28 | 20,9 | 47 | 69,8 | 9 | 8,8 | 265,5 | 173,5 | 113,5 | 11° | 88° | 164° | 24° | 60° | 280 | 3000 | 5500 | 1400 | 2800 |
