Schnellspanner horizontal mit senkrechtem Fuß und verstellbarer Andruckspindel_1
Artikelnummer: 05904
Produktinfo
Material
Steel;
polyamide handle element
Yta
Nitro-carburized and black oxidized
Notera
Maintenance-free, high-quality swivel bushings. Consistently constant use of force when opening and closing. Optimum stability is achieved through the conical clamping arm with U-profile.
See 05280, 07110, 07119, 07120, 07121, 07140, 07142 for accessories.

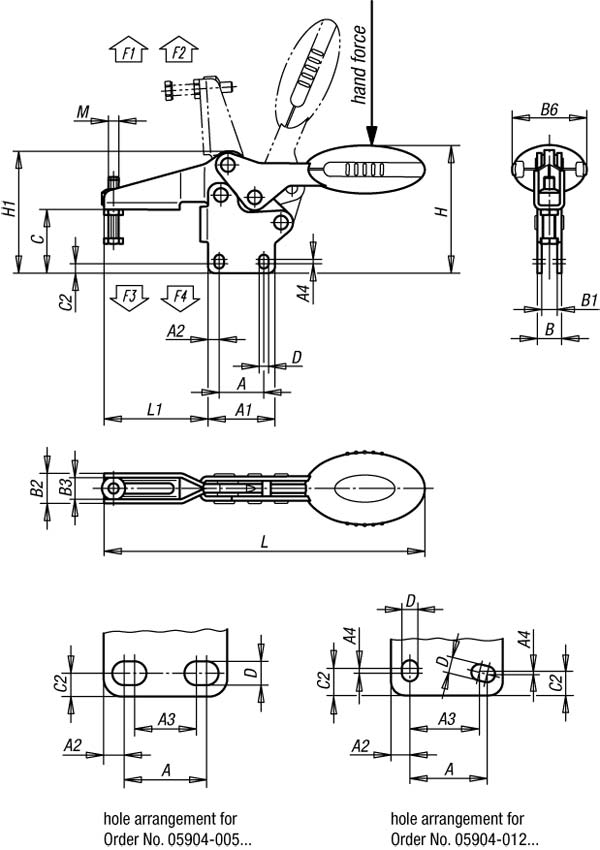

| Order No. | M | A | A1 | A2 | A3 | A4 | B | B1 | B2 | B3 | B6 | C | C2 | D | H | H1 | L | L1 | Opening angle of holding arm | Opening angle of handle | Hand force N | Holding force F1 N | Holding force F2 N | Clamping force F3 N | Clamping force F4 N |
|---|
| 05904-005001 | M5x25 | 18 | 27 | 4,5 | 13,5 | - | 8,1 | 4,1 | 13,2 | 9,1 | 22,5 | 26 | 5,1 | 5,5 | 51,8 | 47,7 | 125,7 | 41,8 | 86° | 69° | 100 | 650 | 900 | 550 | 620 |
| 05904-006001 | M6x35 | 26 | 39 | 6,5 | - | 2,5 | 14,1 | 9,1 | 17,5 | 12,4 | 43,5 | 37 | 5,5 | 5,5 | 74,2 | 71 | 186,8 | 60,5 | 87° | 68° | 160 | 1350 | 1900 | 720 | 1200 |
| 05904-008001 | M8x45 | 26 | 44 | 9 | - | 3,5 | 14,1 | 9,1 | 21 | 15,7 | 41,5 | 46,5 | 7 | 6,2 | 88,2 | 84,4 | 223,5 | 74,9 | 88° | 66° | 200 | 2000 | 2800 | 830 | 1400 |
| 05904-010001 | M10x55 | 41,5 | 59 | 9 | - | 2 | 16,2 | 9,2 | 26 | 18,7 | 47 | 59,6 | 8 | 8,8 | 114,4 | 107,5 | 279,3 | 103,9 | 90° | 69° | 250 | 2200 | 4500 | 1200 | 2800 |
| 05904-012001 | M12x70 | 44 | 65 | 10 | 40 | 1 | 16,2 | 9,2 | 28 | 20,9 | 47 | 75,9 | 13,5 | 8,5 | 128,4 | 125,2 | 314,7 | 122 | 88° | 68° | 280 | 2400 | 5500 | 1000 | 2800 |
