Schnellspanner horizontal mit Sicherheitsverriegelung, mit waagrechtem Fuß und verstellbarer Andruckspindel
Artikelnummer: 05900_1
Produktinfo
Material
Steel;
polyamide handle element;
TPE unlocking bracket
Yta
Nitro-carburized and black oxidized
Notera
Maintenance-free, high-quality swivel bushings. Consistently constant use of force when opening and closing. Optimum stability is achieved through the conical clamping arm with U-profile. Includes an internal bar lock with automatic safety.
See 05280, 05880, 07110, 07119, 07120, 07121, 07140, 07142 for accessories.

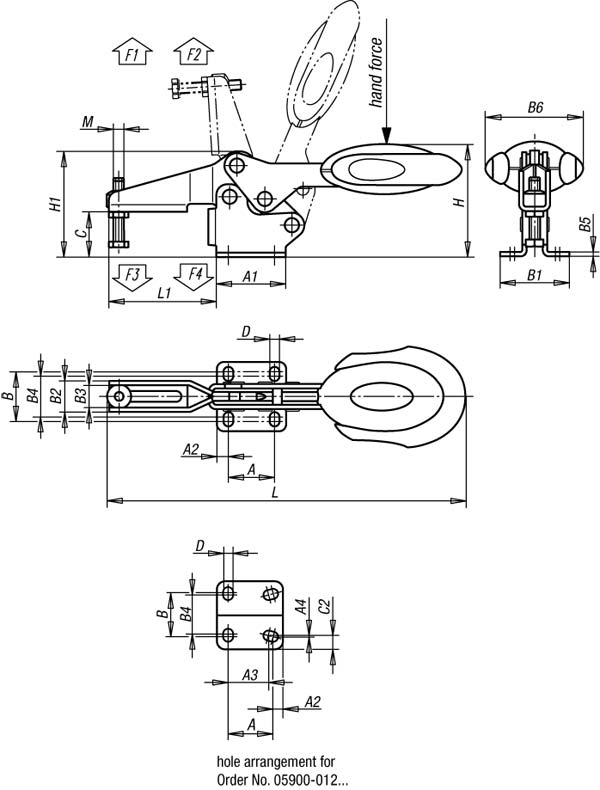

| Order No. | M | A | A1 | A2 | A3 | A4 | B | B1 | B2 | B3 | B4 | B5 | B6 | C | C2 | D | H | H1 | L | L1 | Opening angle of holding arm | Opening angle of handle | Hand force N | Holding force F1 N | Holding force F2 N | Clamping force F3 N | Clamping force F4 N |
|---|
| 05900-006101 | M6x35 | 26 | 39 | 6,5 | - | - | 28 | 39 | 17,5 | 12,4 | 23 | 2,5 | 53,4 | 25,5 | - | 5,5 | 63,3 | 59,5 | 193,3 | 60,5 | 87° | 68° | 160 | 1350 | 1900 | 720 | 1200 |
| 05900-008101 | M8x45 | 26 | 44 | 9 | - | - | 31 | 45 | 21 | 15,7 | 24 | 2,5 | 51,1 | 32,2 | - | 6,2 | 73,9 | 70 | 230,3 | 74,9 | 88° | 66° | 200 | 2000 | 2800 | 830 | 1400 |
| 05900-010101 | M10x55 | 41,5 | 59 | 9 | - | - | 43 | 59 | 26 | 18,7 | 39 | 3,5 | 56,5 | 40 | - | 8,8 | 94,8 | 87,9 | 286 | 103,9 | 90° | 69° | 250 | 2200 | 4500 | 1200 | 2800 |
| 05900-012101 | M12x70 | 44 | 65 | 10 | 40 | 1 | 42 | 67 | 28 | 20,9 | 40 | 3,5 | 56,5 | 52,3 | 13,5 | 8,5 | 104,9 | 101,6 | 321,3 | 122 | 88° | 68° | 280 | 2400 | 5500 | 1000 | 2800 |
