Andruckspindeln mit aufvulkanisiertem Neoprendruckstück
Artikelnummer: 05887
Produktinfo
Material
Threaded spindle, washers and nuts in steel,
pressure pad in neoprene
Yta
Threaded spindle and washers galvanized,
nuts black oxide finish
Notera
The clamping spindle 05887-04032 is supplied with one nut.
| Order No. | L | L1 | D | Approx. weight kg | D1 | M |
|---|
| 05887-04032 | 32 | 9 | 8 | 0,007 | 11 | M4 |
| 05887-05038 | 38 | 10 | 10 | 0,010 | 13 | M5 |
| 05887-06045 | 45 | 13 | 12 | 0,018 | 16 | M6 |
| 05887-08065 | 63 | 16 | 16 | 0,045 | 21 | M8 |
| 05887-10085 | 86 | 20 | 22 | 0,088 | 27 | M10 |
| 05887-12100 | 100 | 24 | 24 | 0,136 | 30 | M12 |

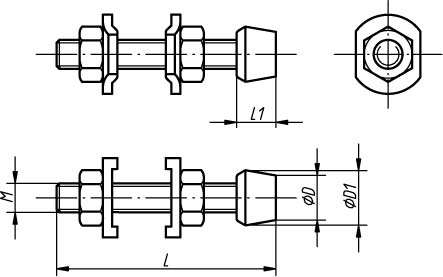

Konstruktion
