Exzenterhebel einfach
Artikelnummer: 04290
Produktinfo
Material
Tempered steel 1.7220, plastic ball
Yta
Heat-treated and black oxide finish
Notera
Suitable Hinge Pin, see 04250.
The Cam Lever is an eccentric lever that moves along a logarithmic spiral. Its clamping properties are even over the entire contact surface of the cam.

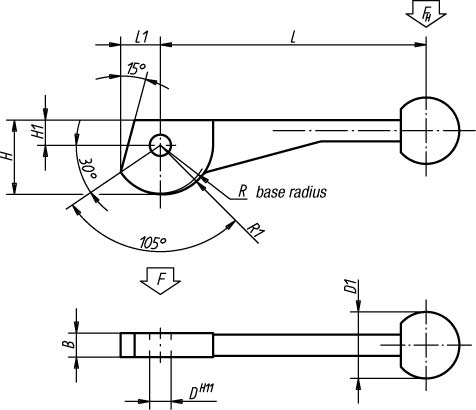

| Order No. | L | L1 | B | D | ToleranceD | R | R1 | Approx. weight kg | D1 | H | H1 |
|---|
| 04290-08 | 100 | 14,9 | 9 | 8 | H11 | 18 | 19 | 0,100 | 25 | 28 | 9,5 |
| 04290-10 | 120 | 18,7 | 12 | 10 | H11 | 22 | 23,5 | 0,210 | 30 | 35 | 11,5 |
| 04290-12 | 138,5 | 24,2 | 14 | 12 | H11 | 28 | 30 | 0,335 | 30 | 44 | 13,5 |
