Kniehebelpressen Handausführung
Artikelnummer: 05865
Produktinfo
Material
Press stand in cast steel,
Push-Pull Clamp see 05845
Yta
Press stand painted black,
Push-Pull Clamp see 05845
Notera
Push-Pull Clamps with reversible hand lever can be reordered as a complete assembly kit. See 05845 for specifications.
See 05845, 05884, 05885, 05886, 05887, 05890 for accessories.

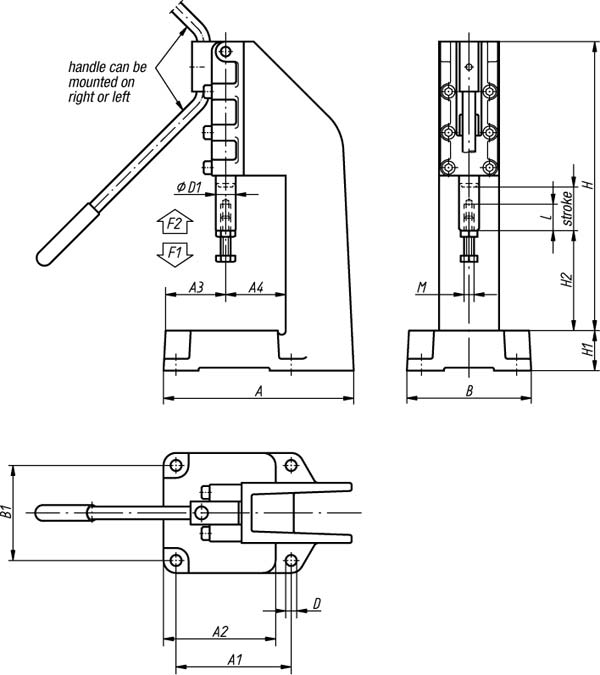

| Order No. | A | A1 | A2 | A3 | A4 | B | B1 | D | H2 | L | Stroke | Hand force N | Opening angle of handle | Approx. weight kg | Holding force F2 N | Clamping force F1 N | D1 | H | M | Form | H1 |
|---|
| 05865-0600 | 150 | 95 | 94 | 50 | 50 | 100 | 80 | 9 | 75 | 30 | 32 | 140 | 185° | 3,600 | 6000 | see 05845 | 14 | 202 | M8 | A | 30 |
| 05865-1200 | 192 | 115 | 112 | 60 | 60 | 120 | 95 | 11 | 100 | 40 | 50 | 150 | 185° | 7,350 | 12000 | see 05845 | 20 | 290 | M10 | A | 40 |
| 05865-2500 | 238 | 145 | 142 | 75 | 75 | 150 | 125 | 11 | 120 | 60 | 75 | 170 | 185° | 15,500 | 25000 | see 05845 | 25 | 418 | M12 | A | 50 |
