Pneumatik-Schubstangenspanner

Artikelnummer: 05860

Material
Lever parts, base and connecting rod in steel, connecting rod housing in spheroidal graphite cast iron (GJS)

Yta
Phosphated, cylinder natural finish

Notera
See 05885, 05886, 05887, 05890 for accessories.

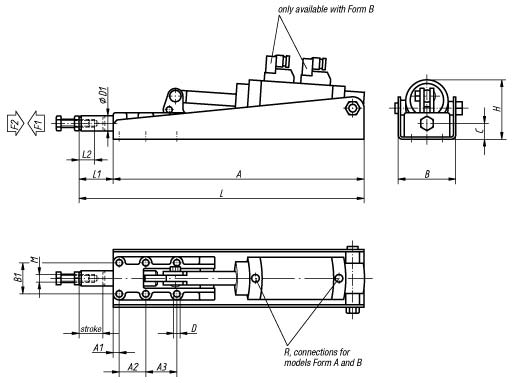

Order No.	A	A1	A2	A3	B	B1	C	D	L	L1	R	Stroke	Air consumption per cycle	Approx. weight kg	Operating pressure bar	No. of strokes per min. at 6 bar	Holding force F2 N	D1	H	Form	M	L2
05860-0600	290	25	36,5	-	59	33,4	14,5	5,5	325	41	G 1/8	25	0,09 dm³	1,450	2 - 6	60	6000	14	53	A	M8	30
05860-1200	380	8	35	41	76	41	21	8,5	435	55	G 1/8	32	0,28 dm³	4,000	2 - 6	50	12000	20	75	A	M10	40
05860-2500	475	12	45	45	96	54	26	10,3	577	102	G 1/4	50	0,60 dm³	7,400	2 - 6	45	25000	25	96	A	M12	60
05861-0600	290	25	36,5	-	59	33,4	14,5	5,5	325	41	G 1/8	25	0,09 dm³	1,450	2 - 6	60	6000	14	53	B	M8	30
05861-1200	380	8	35	41	76	41	21	8,5	435	55	G 1/8	32	0,28 dm³	4,000	2 - 6	50	12000	20	75	B	M10	40
05861-2500	475	12	45	45	96	54	26	10,3	577	102	G 1/4	50	0,60 dm³	7,400	2 - 6	45	25000	25	96	B	M12	60
