Pneumatikspanner horizontal schwere Ausführung
Artikelnummer: 05857
Produktinfo
Material
Steel
Yta
Black oxide finish, cylinder painted
| Order No. | Air consumption per cycle | Opening angle of holding arm | Clamping force at 6 bar F4 N | A | A1 | A2 | B | B1 | B3 | C | C1 | D | L | L1 | S | R | Holding force at 6 bar F1 N | Holding force at 6 bar F2 N | Clamping force at 6 bar F3 N | Approx. weight kg | Operating pressure bar | No. of strokes per min. at 6 bar | H | M |
|---|
| 05857-2000 | 0,76 dm³ | 85° | 8000 | 85 | 128 | 21 | 95 | 126 | 19 | 102 | 45 | 14,2 | 592 | 127 | 8 | G 3/8 | 9000 | 20000 | 6500 | 10,000 | 2 - 6 | 10 | 195 | M18x150 |

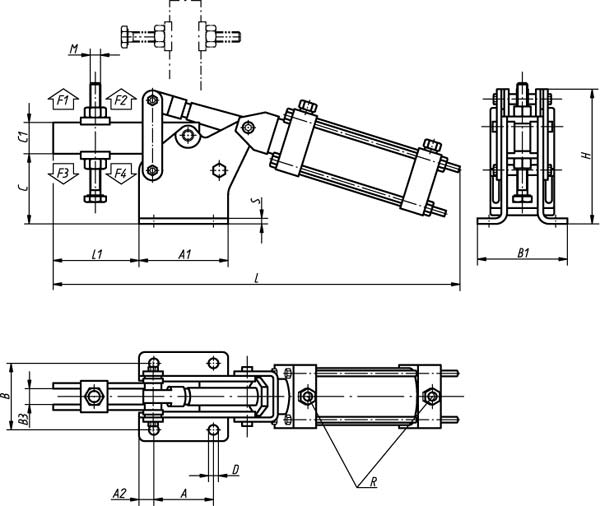

Konstruktion
