Pneumatikspanner vertikal schwere Ausführung

Artikelnummer: 05855

Material
Steel

Yta
Black oxide finish, cylinder painted

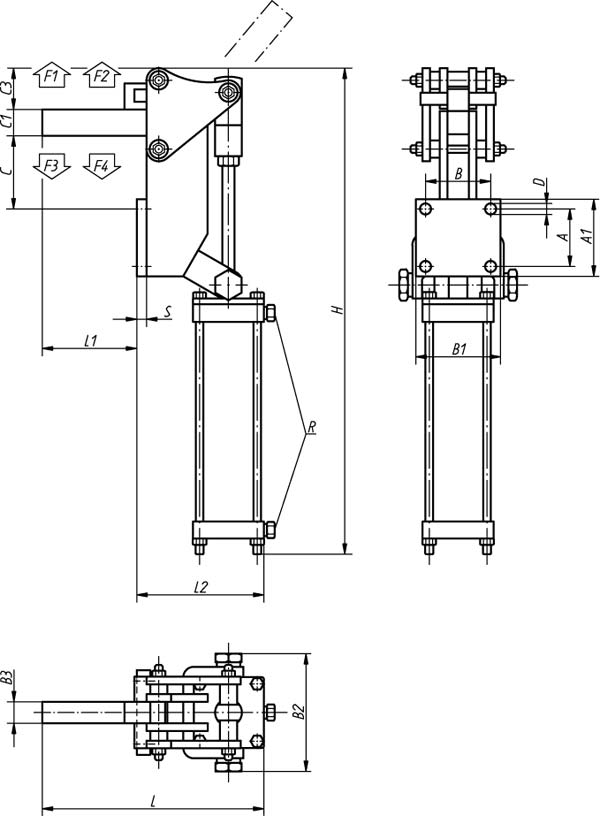

Order No.	Air consumption per cycle	Opening angle of holding arm	Clamping force at 6 bar F4 N	A	A1	B	B1	B2	B3	C	C1	C3	D	L	L1	S	R	Holding force at 6 bar F1 N	Holding force at 6 bar F2 N	Clamping force at 6 bar F3 N	Approx. weight kg	Operating pressure bar	No. of strokes per min. at 6 bar	H	L2
05855-0750	0,27 dm³	120°	3150	48	63	48	63	92	12,7	72	19	43	8,7	169	67	8	G 1/4	3000	7500	2250	3,850	2 - 6	30	425	102
05855-1750	0,75 dm³	120°	8000	55	76	62	82	112	16	70,5	25	55	10,7	215	90	10	G 1/4	6500	17500	6500	6,800	2 - 6	15	482	125
