Pneumatikspanner horizontal

Artikelnummer: 05850

Material
Lever parts and clamping spindle in steel

Yta
Lever parts galvanized and chromated, clamping spindle and nuts phosphated, cylinder natural finish

Notera
A neoprene pressure pad is supplied with models 05850-0075 and 05850-0150. See 05885, 05886, 05887, 05890, 05891 for accessories.

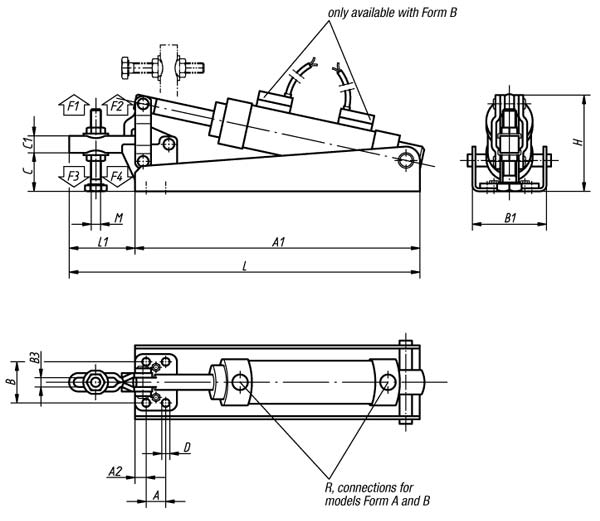

Order No.	Air consumption per cycle	Opening angle of holding arm	Clamping force at 6 bar F4 N	A	A1	A2	B	B1	B3	C	C1	D	L	L1	R	Holding force at 6 bar F1 N	Holding force at 6 bar F2 N	Clamping force at 6 bar F3 N	Approx. weight kg	Operating pressure bar	No. of strokes per min. at 6 bar	H	M	Form
05850-0075	0,02 dm³	70°	1400	16	145	5	24	40	5,3	18	9	4,4	177	32	G 1/8	1000	1600	800	0,400	2 - 6	40	50	M5x35	A
05850-0150	0,04 dm³	85°	1600	12,7	185	7	27	48	6,4	24	11	5,1	227	42	G 1/8	1300	1900	1000	0,650	2 - 6	60	62	M6x50	A
05850-0250	0,09 dm³	85°	1800	19	234	8	32	59	8,9	35	17,5	7,1	309	75	G 1/8	1600	2400	1200	1,240	2 - 6	55	84	M8x60	A
05850-0450	0,27 dm³	85°	5400	32	289	10	45	76	12,7	54	25	8,7	413	124	G 1/8	3000	5800	2600	2,750	2 - 6	55	122	M12x100	A
05851-0075	0,02 dm³	70°	1400	16	145	5	24	40	5,3	18	9	4,4	177	32	G 1/8	1000	1600	800	0,400	2 - 6	40	50	M5x35	B
05851-0150	0,04 dm³	85°	1600	12,7	185	7	27	48	6,4	24	11	5,1	227	42	G 1/8	1300	1900	1000	0,650	2 - 6	60	62	M6x50	B
05851-0250	0,09 dm³	85°	1800	19	234	8	32	59	8,9	35	17,5	7,1	309	75	G 1/8	1600	2400	1200	1,240	2 - 6	55	84	M8x60	B
05851-0450	0,27 dm³	85°	5400	32	289	10	45	76	12,7	54	25	8,7	413	124	G 1/8	3000	5800	2600	2,750	2 - 6	55	122	M12x100	B
