Minischubstangenspanner mit Konsole
Artikelnummer: 05835
Produktinfo
Material
Steel or stainless steel
Yta
Galvanized and chromated, connecting rod and
contact pressure screw phosphated,
stainless steel natural finish,
plastic handle oil-resistant
Notera
The Push-Pull Mini-Clamps can be locked in open and closed handle positions. Therefore they can be used for push and pull.
A neoprene pressure pad is supplied.
See 05885, 05886, 05887, 05890 for accessories.

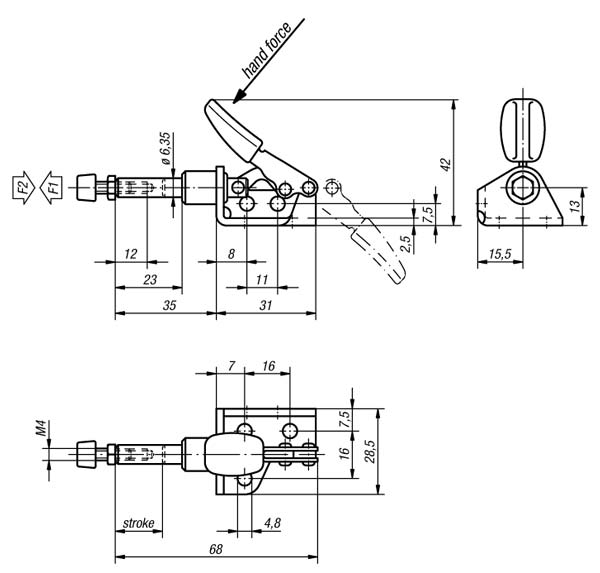

| Order No. | Opening angle of handle | Hand force N | A | A1 | A2 | A3 | A4 | B | B1 | B2 | C | C1 | D | E | L | L1 | L3 | S | Stroke | Holding force F2 N | Approx. weight kg | Surface finish | D1 | H | M | L2 | Clamping force F1 N |
|---|
| 05835-0050 | 190° | 80 | 16 | 31 | 7 | 8 | 11 | 16 | 28,5 | 7,5 | 13 | 7,5 | 4,8 | 15,5 | 68 | 35 | 12 | 2,5 | 16 | 500 | 0,050 | steel | 6,35 | 42 | M4 | 23 | 500 |
| 05835-0050N | 190° | 80 | 16 | 31 | 7 | 8 | 11 | 16 | 28,5 | 7,5 | 13 | 7,5 | 4,8 | 15,5 | 68 | 35 | 12 | 2,5 | 16 | 500 | 0,050 | stainless steel | 6,35 | 42 | M4 | 23 | 500 |
