Bügelspanner horizontal schwere Ausführung mit Gegenhalter
Artikelnummer: 05827
Produktinfo
Material
Steel, base and latch bracket in cast steel, handle in spheroidal graphite cast iron (GJS)
Yta
Galvanized and chromated,
base, latch bracket and handle phosphated,
plastic handle oil-resistant
Notera
Horizontal Latch Clamps are especially suitable for quick closing and fastening of lids and flaps.
The travel path can be set individually at the closing latch.

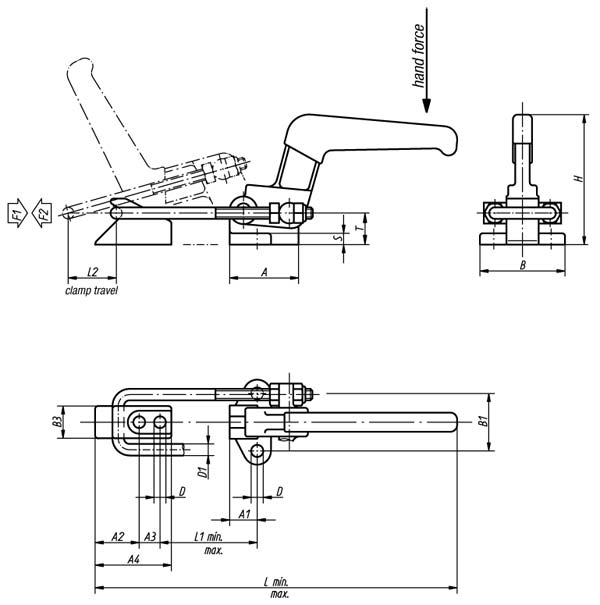

| Order No. | Opening angle of handle | Hand force N | A | A1 | A2 | A3 | A4 | B | B1 | B3 | D | Travel path L min. | Travel path L max. | Travel path L1 min. | Travel path L1 max. | Clamping travel L2 | S | Approx. weight kg | Holding force F2 N | Pull force F1 N | T | D1 | H |
|---|
| 05827-1650 | 120° | 600 | 60 | 24 | 37 | 18 | 65 | 74 | 50 | 28 | 10,3 | 270 | 320 | 38 | 88 | 60 | 10 | 1,400 | 20000 | 16500 | 27 | 10 | 115 |
| 05827-1900 | 120° | 600 | 82 | 36 | 44 | 22 | 78 | 84 | 56 | 34 | 12,4 | 335 | 395 | 52 | 112 | 70 | 12 | 2,600 | 40000 | 19000 | 33,5 | 12 | 132 |
