Zugspanner
Artikelnummer: 05815
Produktinfo
Material
Steel, clamping bow in cast steel
Yta
Galvanized and chromated, plastic handle oil-resistant
Notera
The Tension Clamp is ideal for applications in which there is little mounting space at the sides. In this case the support surface angles of the Tension Clamp are secured to the appropriate holding plate from below.
| Order No. | Opening angle of handle | Hand force N | Approx. weight kg | Opening angle of holding arm | Holding force F1 N | Clamping force F3 N |
|---|
| 05815-0360 | 50° | 250 | 0,500 | 90° | 3600 | 1150 |

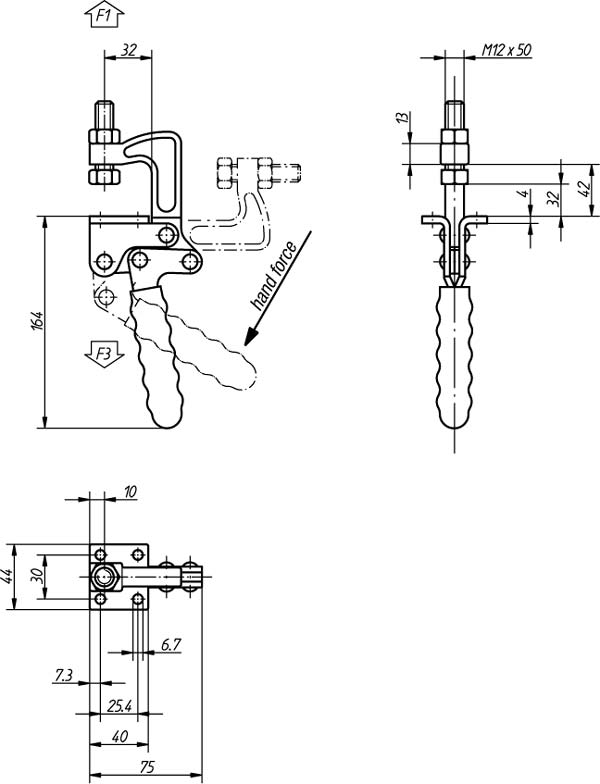

Konstruktion
