Schnellspanner horizontal mit waagrechtem Fuß und vollem Haltearm

Artikelnummer: 05805

Material
Steel

Yta
Galvanized and chromated, plastic handle oil-resistant

Notera

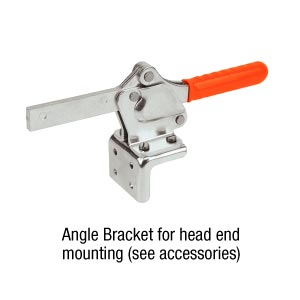

See 05880, 05882, 05885, 05886, 05887, 05890 for accessories.

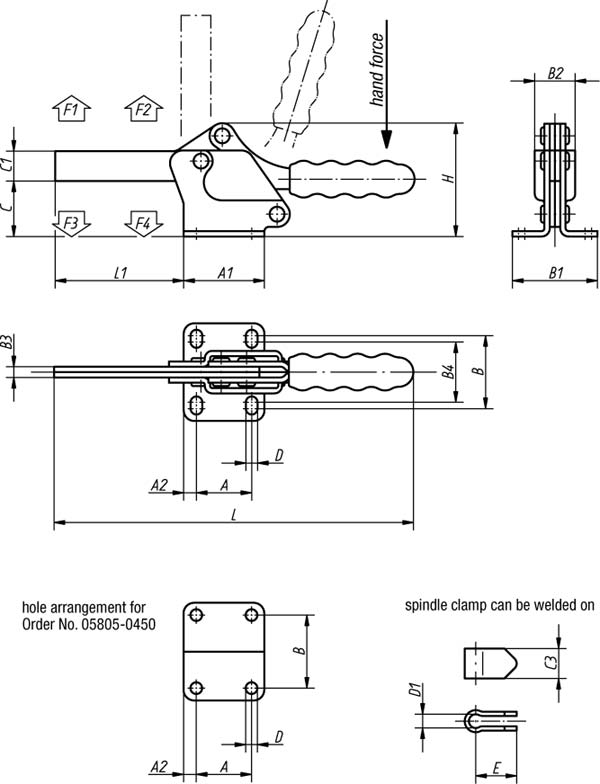

Order No.	Opening angle of holding arm	Opening angle of handle	Hand force N	Clamping force F4 N	A	A1	A2	B	B1	B2	B3	B4	C	C1	C3	D	E	L	L1	Clamping spindle	Order No. Angle Bracket	Holding force F1 N	Holding force F2 N	Clamping force F3 N	Approx. weight kg	D1	H
05805-0250	95°	80°	200	1950	26	42	8	32	47	23	6	27	34	17,5	17,5	6,6	24	226	82	M8x60	05880-04	1500	3500	800	0,500	8,3	67
05805-0350	90°	75°	250	3100	41,2	59	9	43,7	60	30	8	39,7	45	24	22	8,7	30	272	110	M10x80	05880-06	2500	5500	1150	0,900	10,3	91
05805-0450	90°	75°	250	3100	41,2	67	13	42,8	68	38	10	-	59	27	26	8,7	32	310	130	M12x100	05880-06	3000	6500	1150	1,600	12,3	110
