Schnellspanner horizontal mit waagrechtem Fuß und fester Andruckspindel
Artikelnummer: 05800
Produktinfo
Material
Steel
Yta
Galvanized and chromated,
clamping spindle and nuts phosphated,
plastic handle oil-resistant
Notera
The clamping spindle is supplied with a neoprene pressure pad.

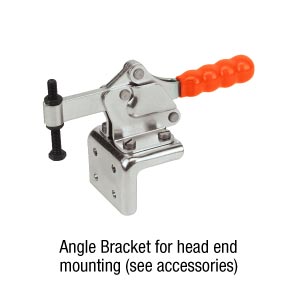

See 05880, 05882, 05885, 05886, 05887, 05890 for accessories.

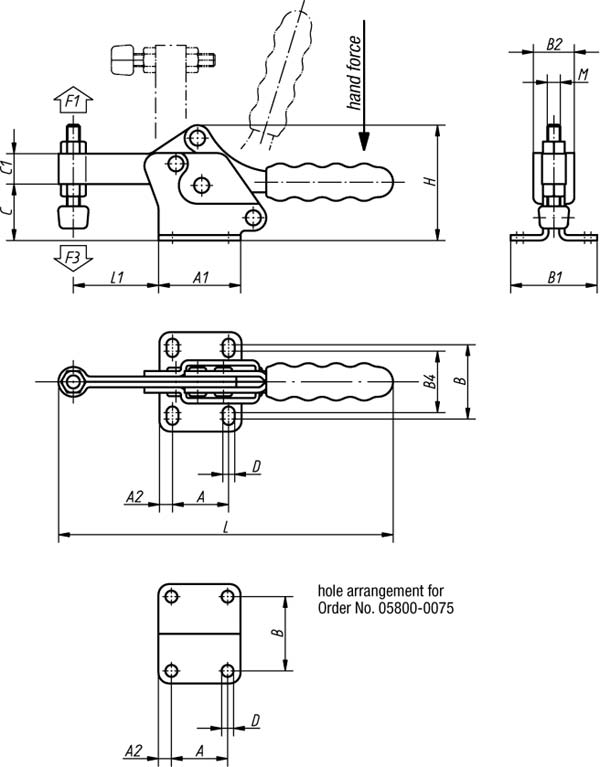

Order No. | Opening angle of holding arm | Opening angle of handle | Hand force N | A | A1 | A2 | B | B1 | B2 | B4 | C | C1 | D | L | L1 | Order No. Angle Bracket | Holding force F1 N | Clamping force F3 N | Approx. weight kg | H | M |
05800-0075 | 90° | 75° | 80 | 13,5 | 25 | 5,7 | 16,8 | 27 | 16 | - | 19 | 9,5 | 5,2 | 108 | 24,5 | 05880-02 | 750 | 320 | 0,100 | 38 | M5x35 |
05800-0150 | 90° | 80° | 140 | 26 | 38 | 6 | 28 | 40 | 20 | 22 | 25 | 14 | 5,5 | 155 | 38 | 05880-04 | 1500 | 650 | 0,250 | 53 | M6x50 |
Konstruktion
