Schnellspanner horizontal mit senkrechtem Fuß und vollem Haltearm

Artikelnummer: 05790

Material
Steel

Yta
Galvanized and chromated, plastic handle oil-resistant

Notera
See 05882, 05885, 05886, 05887, 05890 for accessories.

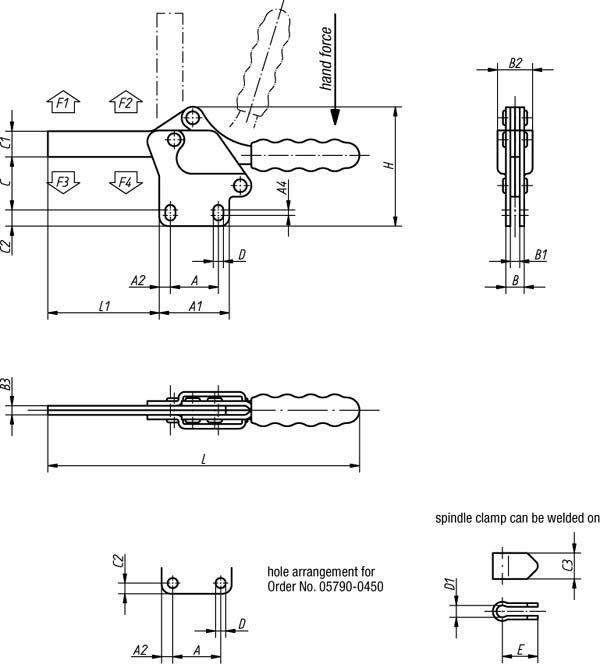

Order No.	Opening angle of holding arm	Opening angle of handle	Hand force N	Clamping force F4 N	A	A1	A2	A4	B	B1	B2	B3	C	C1	C2	C3	D	E	L	L1	Clamping spindle	Holding force F1 N	Holding force F2 N	Clamping force F3 N	Approx. weight kg	D1	H
05790-0250	95°	80°	200	1950	26	42	8	2,6	12	6	23	6	39	17,5	10	17,5	6,6	24	226	82	M8x60	1500	3500	800	0,500	8,3	82
05790-0350	90°	75°	250	3100	41,2	59	9	2	16	8	30	8	54	24	10	22	8,7	30	274	110	M10x80	2500	5500	1150	0,900	10,3	109,5
05790-0450	90°	75°	250	3100	41,2	67	13	-	20	10	38	10	66	27	13	26	8,7	32	310	130	M12x100	3000	6500	1150	1,600	12,3	130
