Minischnellspanner horizontal mit waagrechtem Fuß rechts und verstellbarer Andruckspindel
Artikelnummer: 05780
Produktinfo
Material
Steel
Yta
Galvanized and chromated,
clamping spindle and nuts phosphated,
plastic handle oil-resistant
Notera
See 05885, 05886, 05887, 05890, 05891 for accessories.

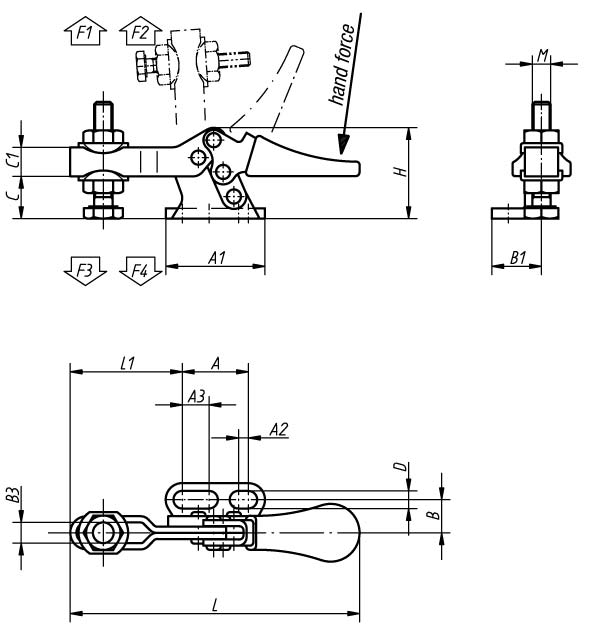

| Order No. | Opening angle of holding arm | Opening angle of handle | Hand force N | Clamping force F4 N | A | A1 | A2 | A3 | B | B1 | B3 | C | C1 | D | L | L1 | Holding force F1 N | Holding force F2 N | Clamping force F3 N | Approx. weight kg | H | M |
|---|
| 05780-0050 | 85° | 65° | 80 | 370 | 16 | 24 | 2,4 | 6,5 | 8 | 12 | 5,2 | 9,5 | 7 | 4,2 | 70 | 27 | 250 | 550 | 170 | 0,020 | 22 | M5x20 |
Konstruktion
